STM3-2-74C/DMS24-180-A | 3" | STM Flanged Characterized ball valve | 2way | CV 74 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Bray

Brand: BraySKU: STM3-2-74C/DMS24-180-A

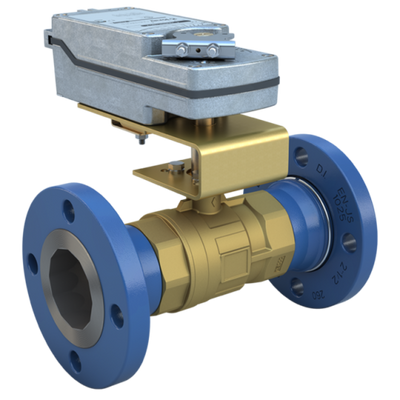

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for STM3-2-74C/DMS24-180-A

Product: STM3-2-74C/DMS24-180-A
Valve Size: 3"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 74
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 100
Weight: 42.4
