Documents: STM3-2-211C/DMS24-180
STM3-2-211C/DMS24-180 | 3" | STM Flanged Characterized ball valve | 2way | CV 211 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | Bray
3 inch | STM Flanged Characterized ball valve | 2way | CV 211 | Normally Closed | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return

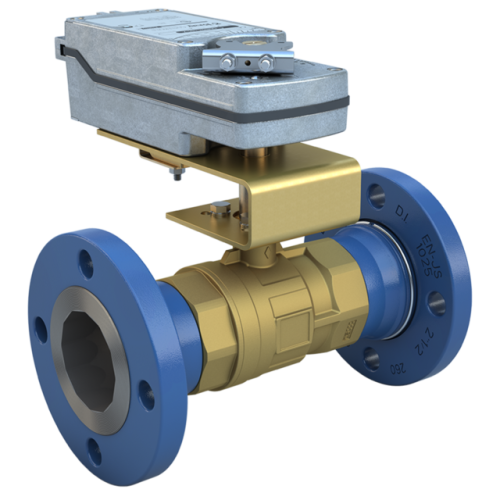

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM3-2-211C/DMS24-180
Overview Details for STM3-2-211C/DMS24-180
Specifications
- Product
- STM3-2-211C/DMS24-180
- Valve Size
- 3"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 211
- Actuator Control Signal
- Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 100
- Weight
- 42.4
