STM250-3-74/D24-210-WS | 2.5" | STM Flanged Characterized ball valve | 3way | CV 74 | Damper & Valve actuator | 24 Vac/dc | 210 lb-in | on/off or floating | Non-Spring Return | Bray (OBSOLETE)

2.5 inch | STM Flanged Characterized ball valve | 3way | CV 74 | Damper & Valve actuator | 24 Vac/dc | 210 lb-in | on/off or floating | Non-Spring Return | Weather Shield for D-140 & D-210 & D-280 Actuator

Brand: BraySKU: STM250-3-74/D24-210-WS
Bray | STM250-3-74/D24-210-WS

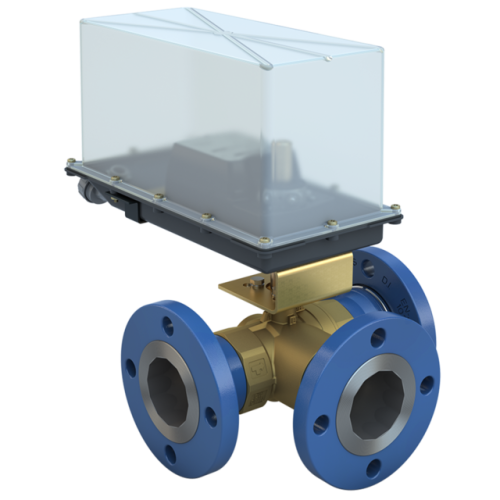

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-3-74/D24-210-WS
Jump to: Overview & Specifications Reviews

Overview Details for STM250-3-74/D24-210-WS



Specifications

Product
STM250-3-74/D24-210-WS
Valve Size
2.5"
2-Way / 3-Way
3-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open Straight (Branch Closed)
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
74
Actuator Control Signal
On/Off;Floating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
1/2" NPT
Actuator Area Classification
IP42;NEMA 2
Close Off Pressure
50
Weight
49.9
