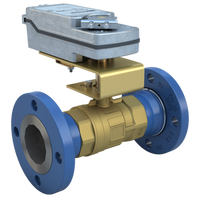

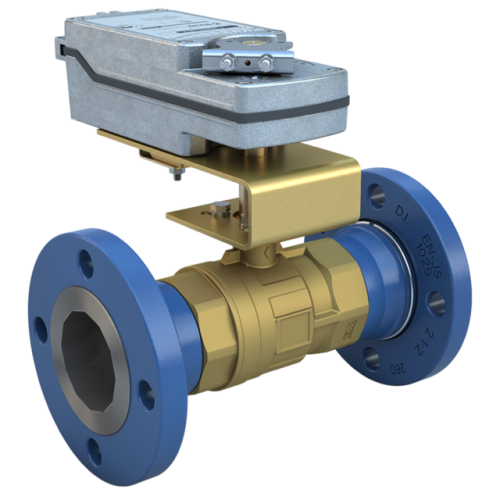

STM250-2-74C/DS120-180 | 2.5" | STM Flanged Characterized ball valve | 2way | CV 74 | Normally Closed | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | Bray

Brand: BraySKU: STM250-2-74C/DS120-180

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for STM250-2-74C/DS120-180

Product: STM250-2-74C/DS120-180
Valve Size: 2.5"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 74
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Power Supply: 120/240 VAC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 100
Weight: 41.6
