Documents: STM250-2-47/DMS24-180-A

STM250-2-47/DMS24-180-A | 2.5" | STM Flanged Characterized ball valve | 2way | CV 47 | Normally Open | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Bray

2.5 inch | STM Flanged Characterized ball valve | 2way | CV 47 | Normally Open | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW

Brand: BraySKU: STM250-2-47/DMS24-180-A
Bray | STM250-2-47/DMS24-180-A

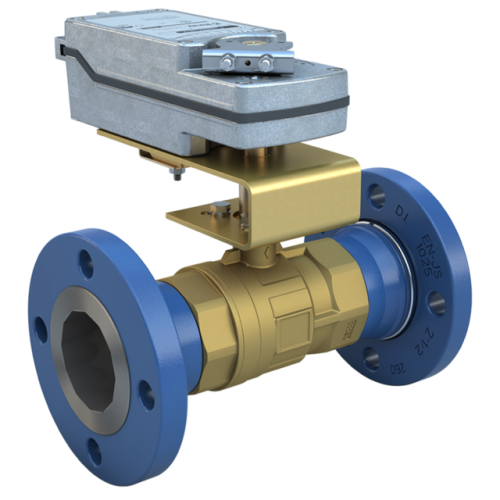

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-2-47/DMS24-180-A

Overview Details for STM250-2-47/DMS24-180-A



Specifications

Product
STM250-2-47/DMS24-180-A
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
47
Actuator Control Signal
Modulating
Actuator Action
Spring Return
Fail Position
Fail Open
Actuator Features
Auxiliary Switches
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
100
Weight
40.4
