STM250-2-117C/DS24-180-TA-WS | 2.5" | STM Flanged Characterized ball valve | 2way | CV 117 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Bray

2.5 inch | STM Flanged Characterized ball valve | 2way | CV 117 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Weather Shield for DS-180 Actuator

Brand: BraySKU: STM250-2-117C/DS24-180-TA-WS

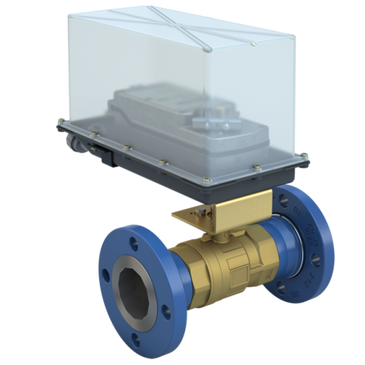

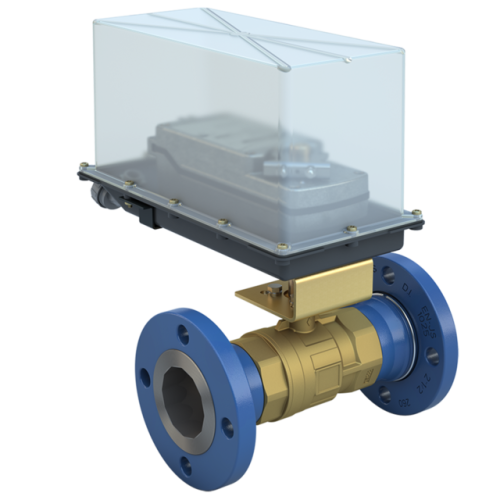

Bray | STM250-2-117C/DS24-180-TA-WS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-2-117C/DS24-180-TA-WS

Overview Details for STM250-2-117C/DS24-180-TA-WS



Specifications

Product
STM250-2-117C/DS24-180-TA-WS
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
117
Actuator Control Signal
On/Off;Floating
Actuator Action
Spring Return
Fail Position
Fail Closed
Actuator Features
Auxiliary Switches
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
100
Weight
44.4
