STM250-2-117/DS24-180 | 2.5" | STM Flanged Characterized ball valve | 2way | CV 117 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Bray (OBSOLETE)

2.5 inch | STM Flanged Characterized ball valve | 2way | CV 117 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return

Brand: BraySKU: STM250-2-117/DS24-180

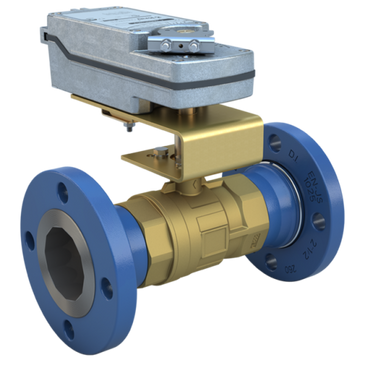

Bray | STM250-2-117/DS24-180

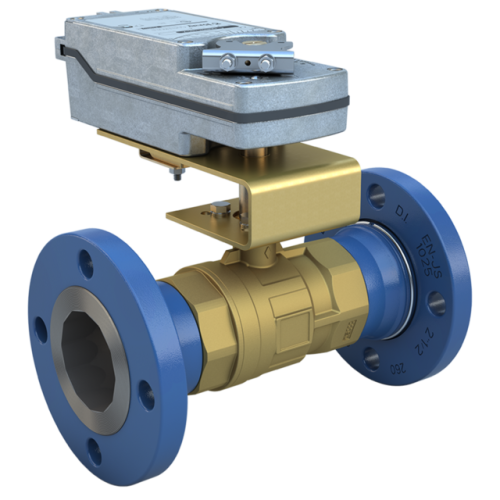

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STM250-2-117/DS24-180
Jump to: Overview & Specifications Reviews

Overview Details for STM250-2-117/DS24-180



Specifications

Product
STM250-2-117/DS24-180
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
117
Actuator Control Signal
On/Off
Actuator Action
Spring Return
Fail Position
Fail Open
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification
IP54;NEMA 2
Close Off Pressure
100
Weight
40.4
