Documents: STM250-2-117/DCM24-310-WS

More Info

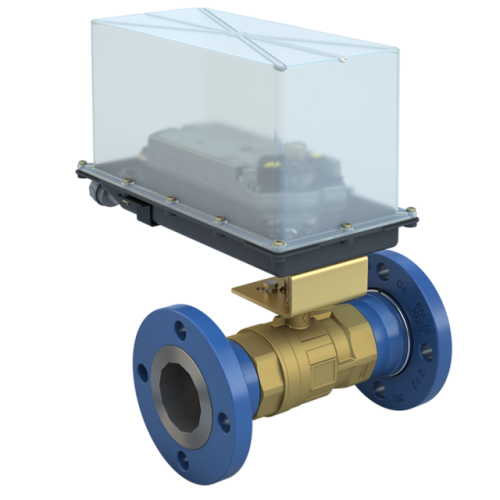

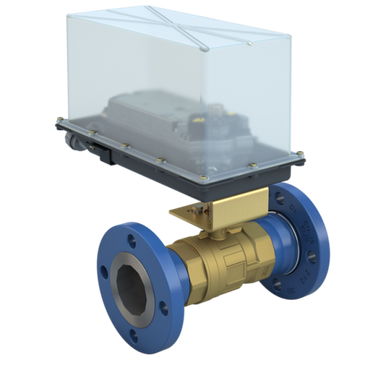

STM250-2-117/DCM24-310-WS | 2.5" | STM Flanged Characterized ball valve | 2way | CV 117 | Normally Open | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Weather Shield for DC-310 Actuator | Bray

Brand: BraySKU: STM250-2-117/DCM24-310-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STM250-2-117/DCM24-310-WS

Jump to: Overview & Specifications Reviews

Overview Details for STM250-2-117/DCM24-310-WS

Specifications

Product: STM250-2-117/DCM24-310-WS
Valve Size: 2.5"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 117
Actuator Control Signal: Modulating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: 3/8" Flex
Actuator Area Classification: IP54
Close Off Pressure: 100
Weight: 42.4
