MKL2-C025/DS24-180-TA-WS | 2.5" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 160 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Bray
2.5 inch Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 160 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Weather Shield for DS-180 Actuator

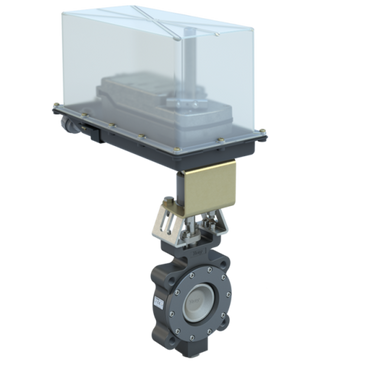

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL2-C025/DS24-180-TA-WS
Documents and manuals
Bray MKL2-C025/DS24-180-TA-WS Documents
Overview
Details for MKL2-C025/DS24-180-TA-WS
Specifications
- Product
- MKL2-C025/DS24-180-TA-WS
- Valve Size
- 2.5"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 160
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 285
- Weight
- 27.4
