MKL2-C025/DS24-180-TA | 2.5" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 160 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Bray

Brand: BraySKU: MKL2-C025/DS24-180-TA

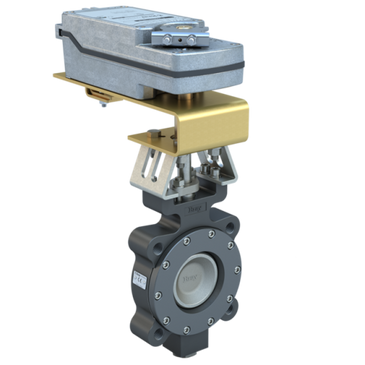

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL2-C025/DS24-180-TA

Product: MKL2-C025/DS24-180-TA
Valve Size: 2.5"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 160
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: On/Off;Floating
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 285
Weight: 23.4
