Documents: 3LNE-02S2N/DS24-180-TA
3LNE-02S2N/DS24-180-TA | 2" Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 87 | Normally Open | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Bray
2 inch Lugged Butterfly Valve Resilient Seated | ANSI Class 125/150 | DI body | NDI Disc | CV 87 | Normally Open | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW

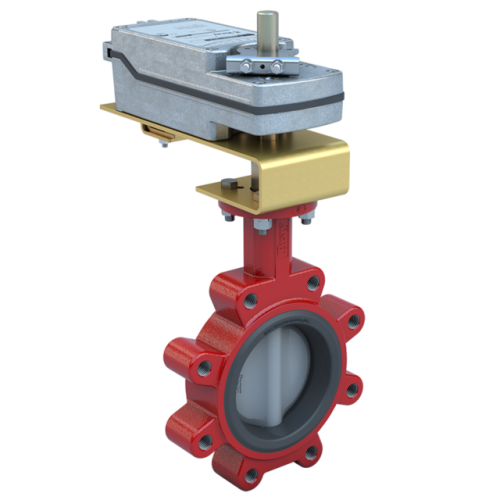

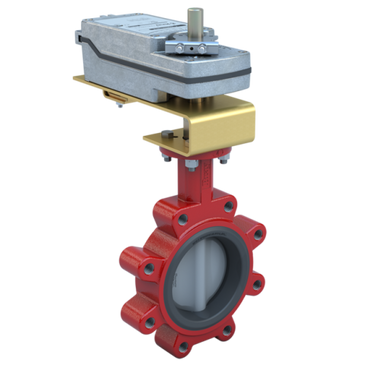

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3LNE-02S2N/DS24-180-TA
Overview Details for 3LNE-02S2N/DS24-180-TA
Specifications
- Product
- 3LNE-02S2N/DS24-180-TA
- Valve Size
- 2"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 87
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Spring Return
- Fail Position
- Fail Open
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 175
- Weight
- 17.4
