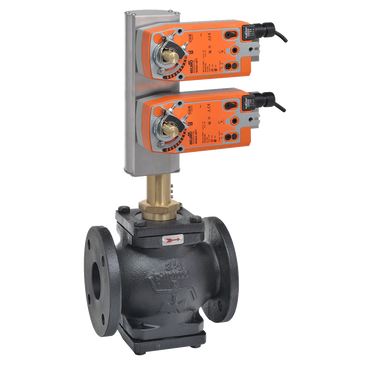

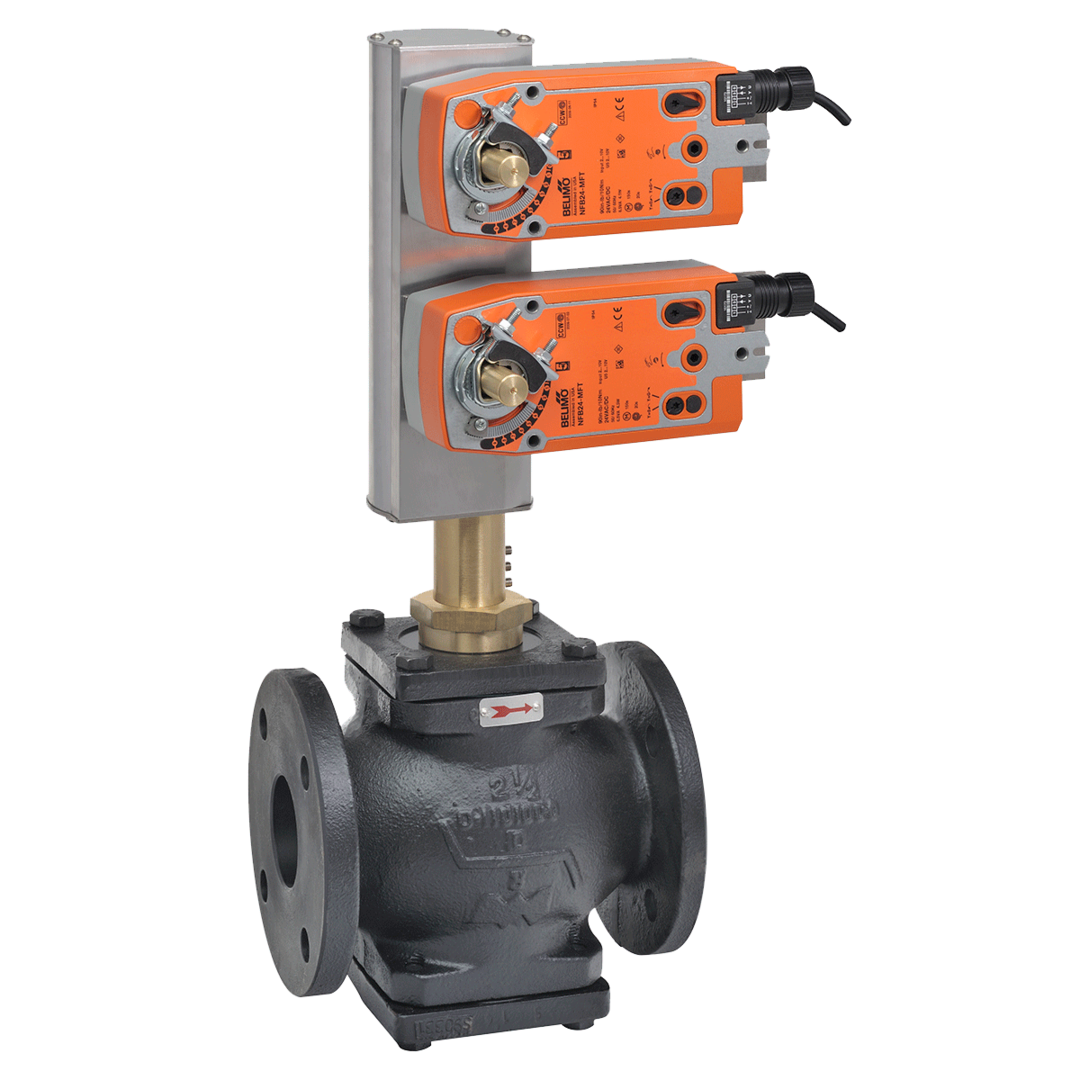

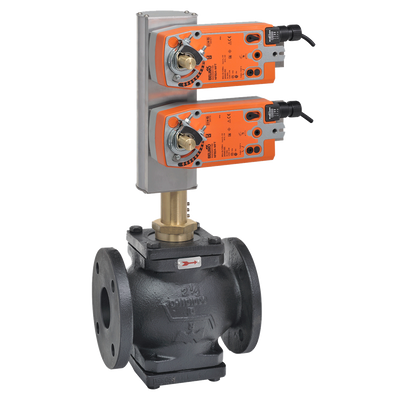

G6150C+2*AFX24-MFT95-X1 | Globe Valve | 6" | 2 Way | 344 Cv | w/ Spg Rtn | 24V | MFT | Belimo (OBSOLETE)
Globe Valve (GV), 6", 2-way, ANSI Class 125, Cv 344 |Valve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G6150C+2*AFX24-MFT95-X1
Documents and manuals
Belimo G6150C+2*AFX24-MFT95-X1 Documents
Overview
Details for G6150C+2*AFX24-MFT95-X1
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Globe Valve | 6" | 2 Way | 344 Cv | w/ Spg Rtn | 24V | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 125
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 344
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Spring return
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
