G315D+LVX24-MFT | Globe Valve | 0.5" | 3 Way | 44 Cv | w/ Non-Spg | 24V | MFT | Belimo (OBSOLETE)

Globe Valve (GV), 1/2", 3-way, ANSI Class 250, Cv 4.4 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

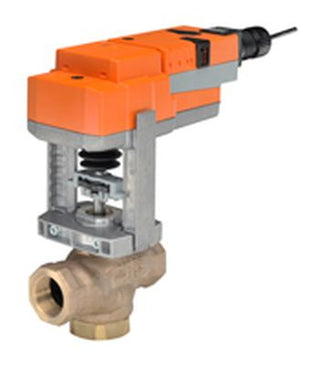

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to G315D+LVX24-MFT

Jump to: Documents Overview Specifications Alternatives Reviews

Documents and manuals

Belimo G315D+LVX24-MFT Documents

Datasheet Installation Instructions

Overview

Details for G315D+LVX24-MFT

DISCONTINUED AND REPLACED WITH G315B-J+SVX24-MFT

Globe Valve | 0.5" | 3 Way | 44 Cv | w/ Non-Spg | 24V | MFT

Application

This valve is typically used in Air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic system with constant or variable flow. 3-way valves are available with mixing or diverting flow patterns.

Specifications

Item Number	G315D+LVX24-MFT
Brand	Belimo
Control Input	Belimo MFT (Modulating)
Control Valves Type	Globe Valve
Cv / GPM	4.4 Cv
Spring Return	Non-Spring Return
Valve Size	0.5" - 3 Way
Voltage	24V
