F6125HD+PRXUP-MFT-T | Butterfly Valve | 5" | 2 Way | 1022 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo
Butterfly Valve (BFV), 5", 2-way, ANSI Class Consistent with 125, Cv 1022 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

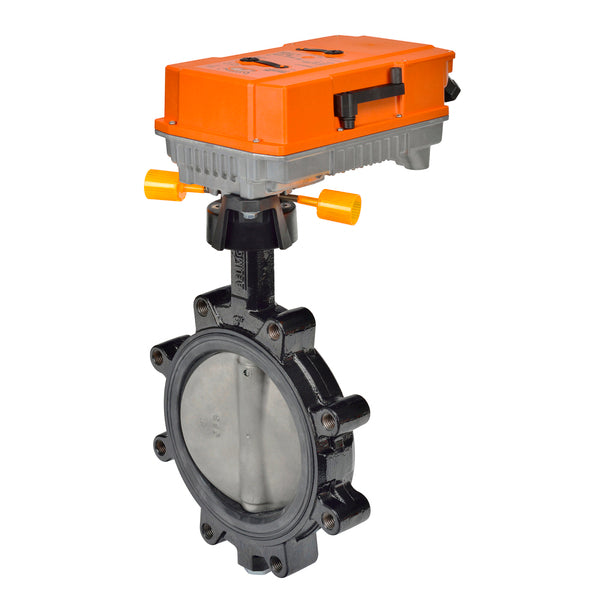

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6125HD+PRXUP-MFT-T
Overview
Details for F6125HD+PRXUP-MFT-T
Butterfly Valve | 5" | 2 Way | 1022 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1022
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Torque
- 160 Nm
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
