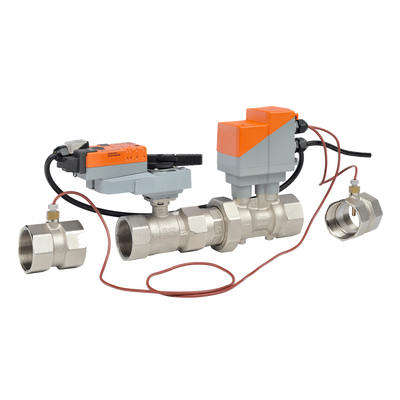

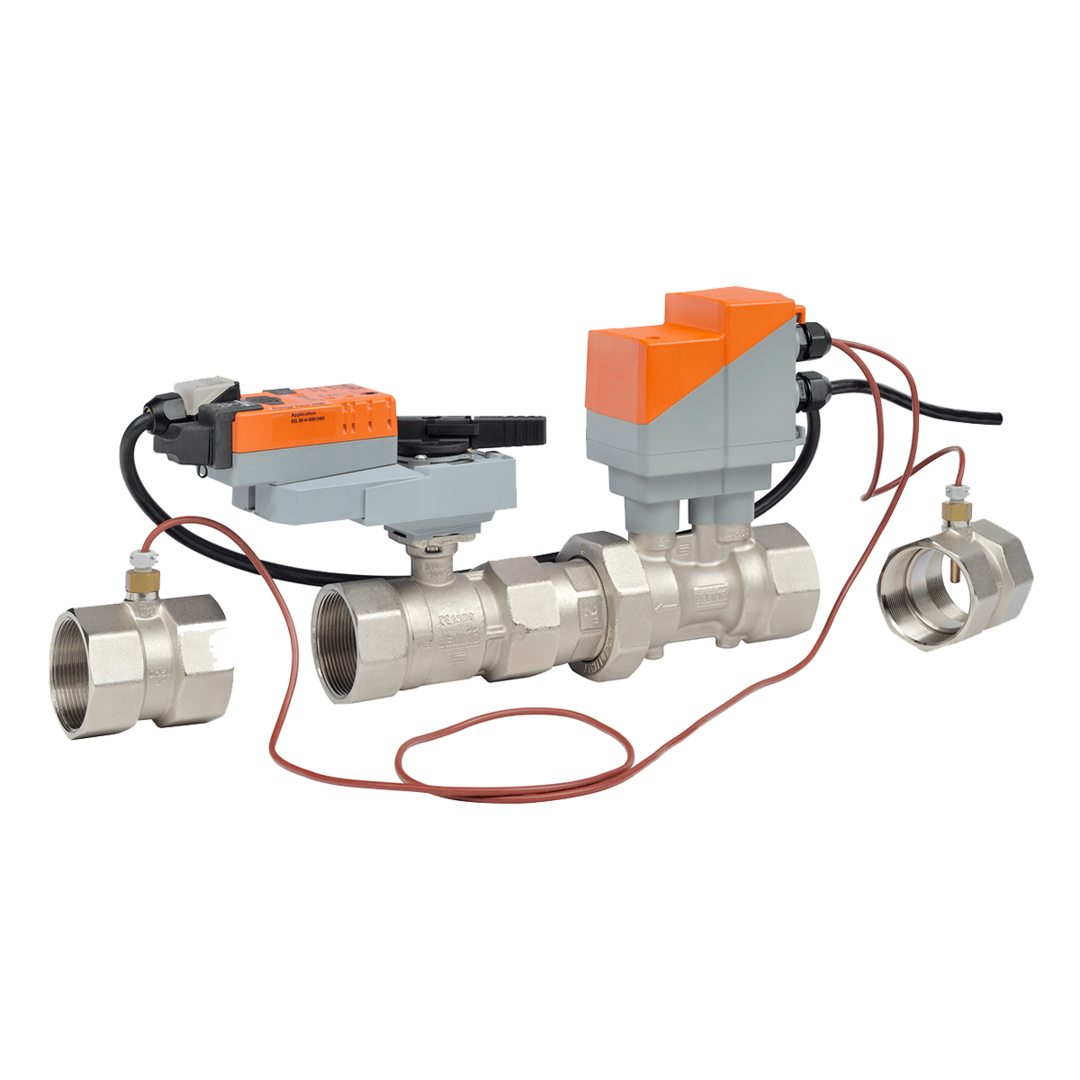

EV125S-285+AKRB24-EV | Energy Valve | 1.25" | 2 Way | 28.5 GPM | w/ Electronic FS | 24V | 2-10V | Belimo (OBSOLETE)
Electr. 2-way PI-CCV Belimo Energy Valve™ fail-safe, AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, MP-Bus, DN 1 1/4"[32], Internal thread, GPM 28.5
Documents and manuals
Belimo EV125S-285+AKRB24-EV Documents
Overview
Details for EV125S-285+AKRB24-EV
Energy Valve | 1.25" | 2 Way | 28.5 GPM | w/ Electronic FS | 24V | 2-10V
Energy Valve | 1.25" | 2 Way | 28.5 GPM | w/ Electronic FS | 24V | 2-10V
Application
Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.
Operation
The Energy Valve is an energy metering pressure independent control valve that measures, documents and optimises water coil performance.
Product Features
The Energy Valve measures energy using its built-in electronic flow sensor and supply and return temperature sensors. Controls power with its power control logic providing linear heat transfer regardless of temperature and pressure variations. Manages low delta-T with its built in Delta-T manager. Measures glycol with advanced algorithms in its built in flow sensor. An IoT device utilising cloud-based technology to optimise performance.
Resources
Specifications
Item Number | EV125S-285+AKRB24-EV |
Brand | Belimo |
Control Input | Modulating |
Control Valves Type | Energy Valve |
Cv / GPM | 28.5 GPM |
Spring Return | Electronic Fail-Safe |
Valve Size | 4" - 2 Way |
Voltage | 24V |
