VTR8350A5500BP | FCU ROOM CONTROLLER W/PIR & HUMIDITY AND ZIGBEE PRO ON-BOARD [VC SERIES RELAY PACK SOLD SEPARATELY] | Viconics
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VTR8350A5500BP
Overview
Details for VTR8350A5500BP

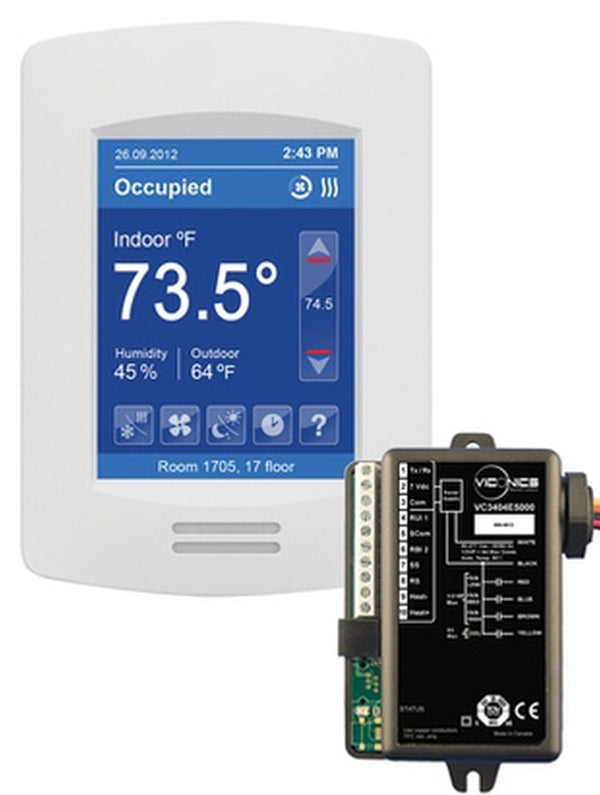

FCU Room Controller w/PIR & Humidity and ZigBee Pro On-Board
- VTR8350 Series room controllers are used for Line Voltage Fan Coil Unit control with VC3000 Series Relay Packs.
- The VTR8350 can also be used as a BACnet SmartStat.
- It is IP ready and can take a WIFI Module.
- The room controllers rated supply voltage is 7-30 V DC at 2.4 watts or 24 V AC at 50 or 60 Hz +/-15 % Class 2.4 VA.
- The room controller is equiped with a communication port that uses BACnet MS/TP protocol and PIR and RH sensors.
- Its Room and Outdoor Air Temperature Display Range is between -40 and 122 oF.
- The measurement accuracy is +/- 0.5 %.
- The temperature setting range is 54 to 100 oF for cooling and 40 to 89 oF for heating.
- The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2.
- The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive.
- The ambient air temperature for operation is between 32 and 122 oF.
- The relative humidity for operating or storage is between 0 and 75% non condensing.
Specifications
Item Number | VTR8350A5500BP |
Brand | Viconics |
Thermostat | Programmable |
