VT8650U5500BP | RTU & HPU Rm Cont w/IAQ, Economizer, Humidity w/PIR and ZigBee Pro On-Board | Viconics

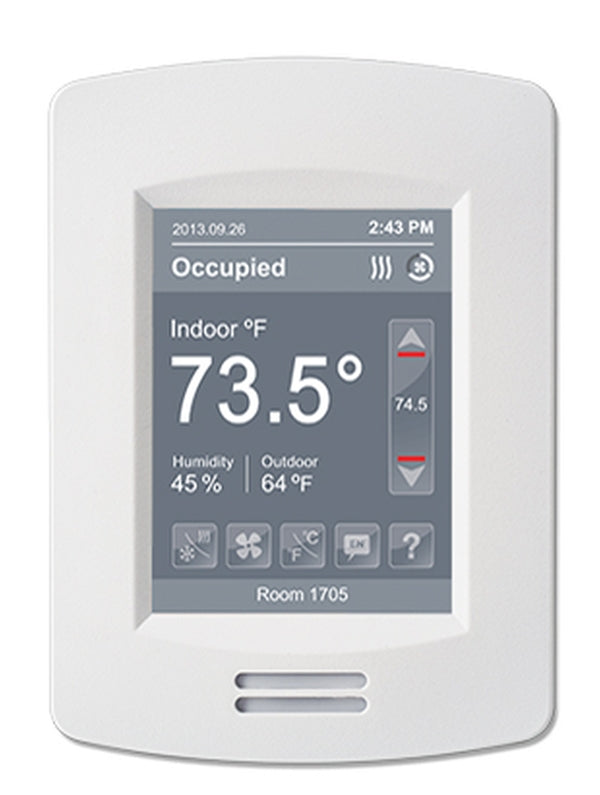

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT8650U5500BP
Documents and manuals
Viconics VT8650U5500BP Documents
Overview
Details for VT8650U5500BP
RTU & HPU Rm Cont w/IAQ, Economizer, Humidity w/PIR and ZigBee Pro On-Board
- VT8650 Series room controllers are used for Roof Top Unit control.
- It is IP ready and can take a WIFI Module.
- The room controllers rated supply voltage range is 24 V AC at 50 or 60 Hz +/-15 %.
- The rated current is 4A.
- The device consumption is up to 12 VA.
- The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol and PIR and RH sensors.
- Its Room and Outdoor Air Temperature Display Range is between -40 and 122 oC.
- The measurement accuracy is +/- 0.5 %.
- The temperature setting range is 54 to 100 oC for cooling and 54 to 100 oC for heating.
- The room controller is equiped with 2 digital inputs, 5 analog inputs (5 to 10 V), 4 analog outputs, and 5 digital outputs.
- The analog output voltage is 0 to 10 V DC at < 5 mA into > 2 kOhm resistance.
- The digital output rating is 28 V AC 50 or 60 Hz, 0.3 A, 1.5 A inrush current.
- The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2.
- The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive.
- The ambient air temperature for operation is between 32 and 122 oC.
- The relative humidity for operating or storage is between 0 and 75 % non condensing.
- The humidity reading range is 10 to 90 % RH non-condensing.
Description
Rooftop Unit, Heat Pump and Indoor Air Quality Controller
Specifications
Item Number | VT8650U5500BP |
Brand | Viconics |
Thermostat | Programmable |
Reviews
Recently Viewed
New Arrivals
![Viconics COV-FCU-C-5031 Cover for VT7300 series fancoil Controllers (commercial models) | Blackhawk Supply](http://blackhawksupply.com/cdn/shop/files/COV-FCU-C-5031_753d3eda-9456-490b-833f-59dd3554eaba_large.jpg?v=1719241873)
COV-FCU-C-5031 | Cover for VT7300 series fancoil Controllers (commercial models) | Viconics
Brand: Viconics
SKU: COV-FCU-C-5031![Viconics COV-FCU-L-5031 Cover for VT7305 series fancoil Controllers (Lodging/hotels models) | Blackhawk Supply](http://blackhawksupply.com/cdn/shop/files/VT73XX_973aac48-9f50-4b2f-aa0b-d15eb4ab2b0b_large.png?v=1719241887)

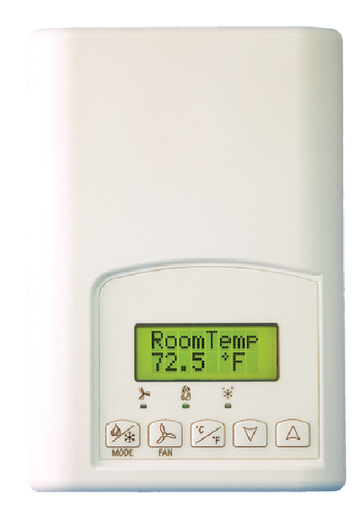

COV-FCU-L-5031 | Cover for VT7305 series fancoil Controllers (Lodging/hotels models) | Viconics
Brand: Viconics
SKU: COV-FCU-L-5031![Viconics COV-RTUHP-5031 Cover for VT7600A/VT7600B series rooftop Controllers | Blackhawk Supply](http://blackhawksupply.com/cdn/shop/files/COV-RTUHP-5031_large.jpg?v=1719241894)

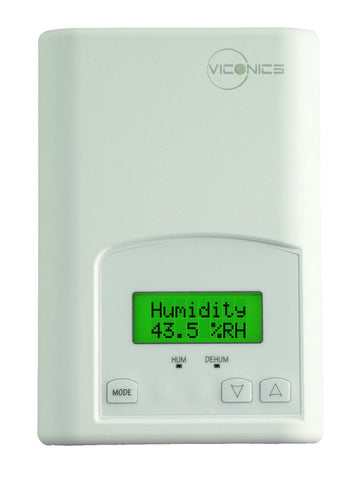

COV-RTUHP-5031 | Cover for VT7600A/VT7600B series rooftop Controllers | Viconics
Brand: Viconics
SKU: COV-RTUHP-5031![Viconics R810-621-REV2 Solid state relay with heatsink 600 V, 25 A | Blackhawk Supply](http://blackhawksupply.com/cdn/shop/files/r810_f333cbf3-b877-41e1-a14a-5300a4cd0e75_large.jpg?v=1719241883)
R810-621-REV2 | Solid state relay with heatsink 600 V, 25 A | Viconics
Brand: Viconics
SKU: R810-621-REV2![Viconics R810-641-REV2 Solid state relay with heatsink 600 V, 45 A | Blackhawk Supply](http://blackhawksupply.com/cdn/shop/files/r810_7d757d8e-9099-44c9-8cf1-812baf43dbb0_large.jpg?v=1719241900)

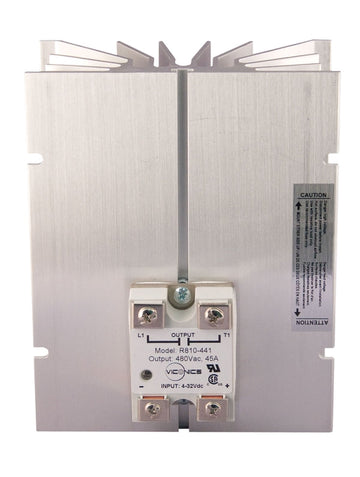

R810-641-REV2 | Solid state relay with heatsink 600 V, 45 A | Viconics
