VT7350C5031B | Thermostat | FanCoil | Commercial | 2 Fltg Cntcs | Aux Out | rH | BACnet | Viconics

Brand: ViconicsSKU: VT7350C5031B

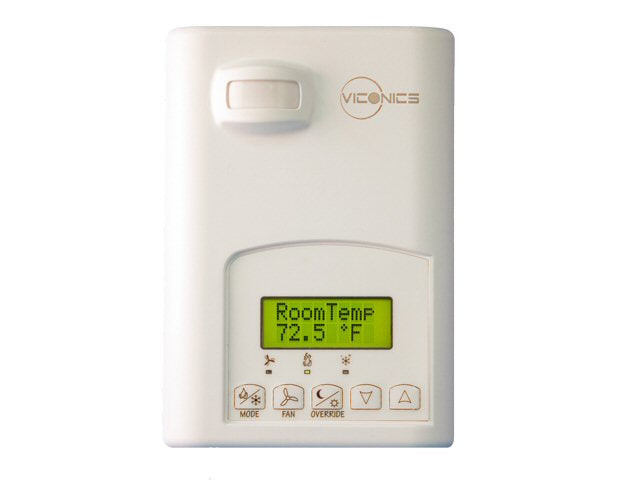

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VT7350C5031B

Jump to: Overview & Specifications Reviews

Overview Details for VT7350C5031B

The Viconics VT7350C5031B is a commercial-grade, BACnet-compatible fan coil thermostat designed for precise temperature and humidity control in demanding environments. This versatile unit offers advanced features and simplified installation, making it ideal for new construction and retrofit projects. Key benefits include:

Precise Temperature & Humidity Control: Maintain optimal comfort levels with accurate temperature and humidity sensing. The PI proportional control algorithm virtually eliminates temperature offsets.
BACnet MS/TP Communication: Seamless integration with building automation systems for centralized monitoring and control.
Commercial-Grade Durability: Built with high-impact ABS plastic for reliable performance in commercial settings.
Versatile Outputs: Two floating contacts and an auxiliary output provide flexible control options for various HVAC applications.
Easy Installation & Configuration: Simple wall-mounted design and intuitive interface minimize installation time and configuration complexity.
Energy Efficiency: Precise control and humidity sensing contribute to energy savings.
Low-Noise Operation: Enjoy a quiet and productive environment.
Programmable: Customizable settings for optimal comfort and energy savings.

Specifications

Item Number	VT7350C5031B
Brand	Viconics
Communications	BACnet
Thermostat	Programmable
Communication Protocol	BACnet MS/TP
Thermostat Type	Programmable Fan Coil
Display Type	Backlit Dot Matrix LCD
Operating Temperature	0 to 50 °C (32 to 122 °F)
Operating Humidity	0 to 95% RH non-condensing
Humidity Sensor Accuracy	±3% from 20-70% RH
Temperature Accuracy	±0.5 °C (±0.9 °F) typical
Outputs	2 Floating Contacts, 1 Auxiliary Output
Enclosure Material	High-impact ABS plastic
Voltage	24 VAC
Set Point Range (Heat)	40 to 90 °F
Set Point Range (Cool)	54 to 100 °F
Wiring Size	Screw terminals, Power Supply 16-18 AWG, Comms 22-24 AWG
