VT7200C5031B | Thermostat | Zone | 2 Floating Cntcts | 1 Digital Cntct | BACnet | Viconics

Viconics | VT7200C5031B

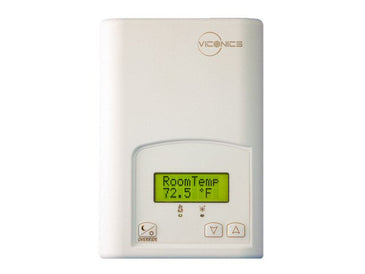

The photo is for representation purposes only and may not be a photo of product being purchased.


Details for VT7200C5031B


Thermostat | Zone | 2 Floating Cntcts | 1 Digital Cntct | BACnet

Zone Controller: 2 On/Off or Floating Outputs, Standard Cover (PIR Ready).


Smart energy management has never been easier than with the VT7200 series. Designed for new construction or retrofit projects, the controllers dramatically decrease total installed costs by reducing installation, configuration and commissioning time.

The VT7200 series provides the advanced features and monitoring functions required by modern building automation systems without the use of software and commissioning tools. The VT7200 series zone controllers are specifically designed to control on-off, floating or 0 to 10 Vdc heating or cooling terminal equipment such as pressure dependent VAV’s, valves or other devices.

Open protocol design provides network compatibility to BACnet® MS/TP, LonWorks® and Wireless ZigBee® Pro network systems. Our Network Ready “stand-alone” versions can be upgraded with optional communication modules which enable the controllers to be integrated into most building automation systems as building requirements change.

All models can be customized with PIR motion sensor functionality via an optional PIR accessory cover. The cover can be installed in the field or ordered as a factory installed option. This provides advanced occupancy routines and automatic energy savings during occupied periods without sacrificing occupant comfort.

Product Highlights

  • Open protocol allows for easy integration into most network systems
  • Network Ready models can be retrofit with optional communication modules
  • One simple wall mounted device to install, wire and commission
  • Intuitive “thermostat like” interface
  • Application specific controllers can be configured to meet most applications
  • No special software required for configuration
  • Fully embedded local configuration utility
  • Advanced occupancy and monitoring functions through factory or field installed PIR cover
