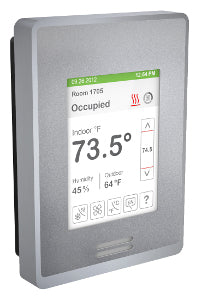

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SE8350U5B00P

Jump to: Overview Specifications Reviews

Overview

Details for SE8350U5B00P

RH ZIGBEE PIR LOW VOL SILVER

Specifications

Product name: SE8000 Series
device short name: SE8300
Product or component type: Room controller
device application: Low voltage fan coil
Net weight: 340 g
AWG gauge: AWG 24...AWG 18
Height: 120 mm
Width: 86 mm
Temperature resolution: 0.1 °C
Humidity measurement drift: Less than 1 % yearly
directives: 2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive
2014/53/EU - radio equipment directive
[In] rated current: 4 A
Depth: 25 mm
Ambient air temperature for operation: 0…50 °C
Market segment: Lodging/hotel
Small commercial
Buildings
Healthcare
Non-critical buildings
Office
Residential
School
Housing colour: Silver
Ambient air temperature for storage: -30…50 °C
Measurement accuracy: Temperature: +/- 0.5 °C,
Humidity: +/- 5 %, 20...80 % RH (non-condensing)
Humidity: +/- 10 %, 10...20 % (non-condensing)
Humidity: +/- 10 %, 80...90 % (non-condensing)
Information displayed: Temperature: - 40...122 °F
Network frequency: 50 Hz
60 Hz
communication port protocol: BACnet MS/TP
Modbus RTU
Zigbee Pro
Temperature setting range: 12…37.5 °C cooling
4.5…32 °C heating
Input voltage: 0...10 V DC
Calibration certificate: 1 pt
Output voltage: 24 V AC for relay output
0...10 V DC for analog output
Relative humidity: 0…95 %
Output current: 1 A relay output
3 A relay output (inrush)
0.3 A universal output
1.5 A universal output (inrush)
Input type: 2 x dry contact
5 x analog
Sensor type: 10 kOhm T2 NTC thermistor temperature
Space RH sensor humidity
Bulk polymer humidity
Output type: 5 xrelay output
4 xuniversal
[Us] rated supply voltage: 24 V AC 50/60 Hz +/- 15 %
Standards: EN/IEC 60730-1
EN/IEC 60730-2-9
EN/IEC 60730-2-13
CSA E60730-2-9
UL 60730-2-9
UL 60730-2-13
ICES-003
FCC part 15 Subpart B
ETSI EN 300 328:v2.1.1
ETSI EN 301 489-1:v1.9.2
FCC part 15 Subpart C
ETSI EN 301 489-17:v2.2.1, 2012
RSS 247
Humidity setting range: 30…95 %
Range: EcoStruxure Building Expert
Economizer: No
Humidity control: Yes
PIR cover: Yes
Scheduling: No
Surface finish: Matt
Surface treatment: Untreated
Function available: Fan control
HVAC control
Available with CO2/RH/T
Brightness sensor
Changes can be made directly over display
Code lock function
Easily configurable
Firmware update by USB
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.6 cm
Package 1 Width: 12.0 cm
Package 1 Length: 2.5 cm
Package 1 Weight: 245.0 g
