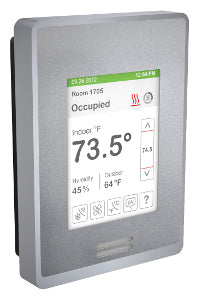

SE8350U5B00 | LWV FCU BN RH PIR SLV SLV | Viconics
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SE8350U5B00
Documents and manuals
Viconics SE8350U5B00 Documents
Overview
Details for SE8350U5B00
LWV FCU BN RH PIR SLV SLV
This SE8350 Low Voltage fan coil unit and zone room controller. With touch color screen. Silver Fascia & Casing. PIR motion sensor. BACnet communication to connect with BMS.Specifications
- Product name
- SE8000 Series
- device short name
- SE8300
- Product or component type
- Room controller
- device application
- Low voltage fan coil
- Net weight
- 340 g
- AWG gauge
- AWG 24...AWG 18
- Targeted region
- North America.
- Height
- 120 mm
- Width
- 86 mm
- Temperature resolution
- 0.1 °C
- Humidity measurement drift
- Less than 1 % yearly
- directives
- 2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive
2014/53/EU - radio equipment directive - [In] rated current
- 4 A
- Depth
- 25 mm
- Ambient air temperature for operation
- 0…50 °C
- Market segment
- Lodging/hotel
Small commercial
Buildings
Healthcare
Non-critical buildings
Office
Residential
School - Housing colour
- Silver
- Ambient air temperature for storage
- -30…50 °C
- Measurement accuracy
- Temperature: +/- 0.5 °C,
Humidity: +/- 5 %, 20...80 % RH (non-condensing)
Humidity: +/- 10 %, 10...20 % (non-condensing)
Humidity: +/- 10 %, 80...90 % (non-condensing) - Information displayed
- Temperature: - 40...122 °F
- Network frequency
- 50 Hz
60 Hz - communication port protocol
- BACnet MS/TP
Modbus RTU - Input voltage
- 0...10 V DC
- Temperature setting range
- 12…37.5 °C cooling
4.5…32 °C heating - Calibration certificate
- 1 pt
- Output voltage
- 24 V AC for relay output
0...10 V DC for analog output - Relative humidity
- 0…95 %
- Output current
- 1 A relay output
3 A relay output (inrush)
0.3 A universal output
1.5 A universal output (inrush) - Input type
- 2 x dry contact
5 x analog - Sensor type
- 10 kOhm T2 NTC thermistor temperature
Space RH sensor humidity
Bulk polymer humidity - Output type
- 5 xrelay output
4 xuniversal - [Us] rated supply voltage
- 24 V AC 50/60 Hz +/- 15 %
- Standards
- EN/IEC 60730-1
FCC part 15 Subpart B
ICES-003
ETSI EN 300 328
ETSI EN 301 489-1:v1.9.2
FCC part 15 Subpart C
UL 60730-2-9
ETSI EN 301 489-17:v2.2.1, 2012 - Humidity setting range
- 30…95 %
- Range
- EcoStruxure Building Expert
- Economizer
- Yes
- Humidity control
- Yes
- PIR cover
- Yes
- Scheduling
- No
- Surface finish
- Matt
- Surface treatment
- Untreated
- Function available
- Fan control
HVAC control
Available with CO2/RH/T
Brightness sensor
Changes can be made directly over display
Code lock function
Easily configurable
Firmware update by USB - Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.7 cm
- Package 1 Width
- 10.6 cm
- Package 1 Length
- 15.2 cm
- Package 1 Weight
- 253 g
