Z050P2-2 | 1/2" 2-Way Zone Sentry Valve Normally Closed (Press) | Taco

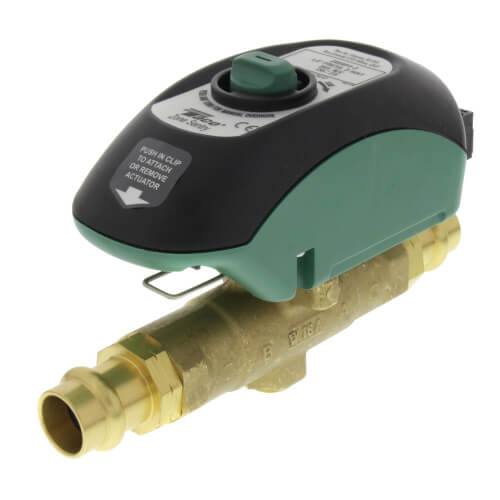

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to Z050P2-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco Z050P2-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for Z050P2-2

1/2" 2-Way Zone Sentry Valve Normally Closed (Press)

Zone Sentry Zone Valves

Taco Zone Sentry ^® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features

Up to 93% less energy usage
Universal Installation Orientation
Usable on Condensing Chilled Water Installations
12 valves on one 40VA transformer
Multi-Function LED
Quick Connect Wiring
Push button actuator replacement
Easy wire quick connections Manual override button
Positional indicator

Applications

Zone Sentry

Hydronic Heating and Cooling

Geo-Sentry^®

Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

Potable Water Zone Sentry

Combination Domestic Water and Hydronic Heating System
Water Shut Off to a Potable System

Specifications

Item Number	Z050P2-2
Brand	Taco
Amperage	0.48
Application	Zoning
Body Pattern	2-Way
Connection Type	Press
Fluid Temperature Range	20°F to 220°F
Hertz	60
Max Operating Pressure	300 psi
Position	Normally Closed
Series	Zone Sentry
Size	1/2"
Type	Zone Valve
Voltage	24 VAC
