Documents: V075T3G1ZA024Q4A2
V075T3G1ZA024Q4A2 | 3/4" 3-Way Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed | Taco

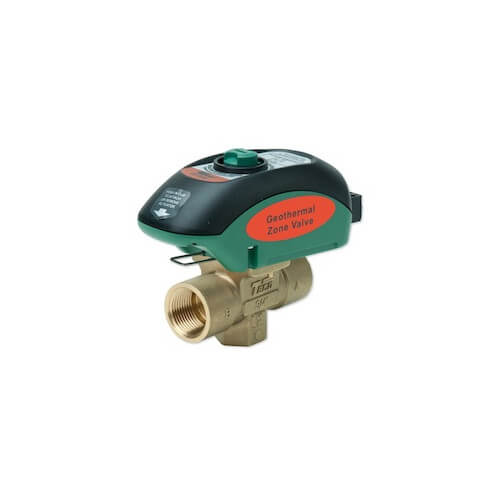

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V075T3G1ZA024Q4A2
Overview Details for V075T3G1ZA024Q4A2
3/4" 3-Way Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed
Zone Sentry Zone Valves
Taco Zone Sentry ® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Performance Data
Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)
Features
- Up to 93% less energy usage
- Universal Installation Orientation
- Usable on Condensing Chilled Water Installations
- 12 valves on one 40VA transformer
- Multi-Function LED
- Quick Connect Wiring
- Push button actuator replacement
- Easy wire quick connections Manual override button
- Positional indicator
Applications
Zone Sentry
- Hydronic Heating and Cooling
Geo-Sentry®
- Open or Closed Loop Geothermal Systems with Water Source Heat Pumps
Potable Water Zone Sentry
- Combination Domestic Water and Hydronic Heating System
- Water Shut Off to a Potable System
The Taco Geo-Sentry® Zone Valve enhances the overall performance of any geothermal system. The unique patented technology in the Geo-Sentry® utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer. The Taco Geo-Sentry® zone valves are available in sweat, threaded and 3-way configurations.
Features
- Up to 93% less energy usage
- Universal Installation Orientation
- Usable on Condensing Chilled Water Installations
- 12 valves on one 40VA transformer
- Multi-Function LED
- Quick Connect Wiring
- 125 PSI Shut-off
- Push button actuator replacement
- Easy wire quick connections Manual override button
- Positional indicator
Specifications
Item Number | V075T3G1ZA024Q4A2 |
Brand | Taco |
Application | Zoning |
Body Pattern | 3-Way |
Close Off Pressure | 125 psi |
Connection Type | Threaded |
End Switch | Yes |
Flow Capacity (Cv) | 3.3 |
Max Pressure (PSI) | 300 |
Position | Normally Closed |
Series | Zone Sentry |
Size | 3/4" |
Type | Zone Valve |
Voltage | 24v |
