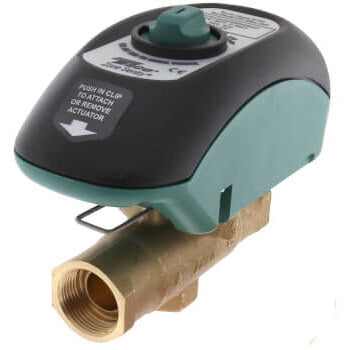

V075T2A2ZB024Q4A2 | 3/4" Zone Sentry Valve, Normally Open (Threaded) | Taco

Taco | V075T2A2ZB024Q4A2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V075T2A2ZB024Q4A2

Documents and manuals

Taco V075T2A2ZB024Q4A2 Documents

Overview

Details for V075T2A2ZB024Q4A2

3/4" Zone Sentry Valve, Normally Open (Threaded)

Zone Sentry Zone Valves

Taco Zone Sentry ® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features
  • Up to 93% less energy usage
  • Universal Installation Orientation
  • Usable on Condensing Chilled Water Installations
  • 12 valves on one 40VA transformer
  • Multi-Function LED
  • Quick Connect Wiring
  • Push button actuator replacement
  • Easy wire quick connections Manual override button
  • Positional indicator
Applications

Zone Sentry

  • Hydronic Heating and Cooling

Geo-Sentry®

  • Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

 Potable Water Zone Sentry

  • Combination Domestic Water and Hydronic Heating System
  • Water Shut Off to a Potable System

Taco Zone Sentry Zone Valves provide on-off, normallyopen or normally closed control in both open and closed hot or chilled water systems. The valves can be used in a wide variety of heating and cooling applications, primarily designed for use with fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

The Zone Sentry is the most technologically advancedzone valve ever made. It's also simple to install and operate. The valve can be installed in any direction, in any orientation. Taco then went a step further, allowing the operator to be mounted to the valve body in either direction (see Figure A of the manual in the "Manuals" tab), great for those tight baseboard jobs.Snap-in quick connects on the back of the valve makefor a simple, secure and fast wiring hook-up. A greenLED light shows full functionality of the valve's operation and thermostat status. Under a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90° and is also marked with a slot to indicate the position of the valve.

Specifications

Item Number V075T2A2ZB024Q4A2
Brand Taco
Application Zoning
Body Pattern Straight-Through
Connection Type Threaded
End Switch Yes
Flow Capacity (Cv) 10.3
Hertz 60
Material Forged Bronze
Max Close-Off PSI 125 psi
Max Pressure (PSI) 300
Max Temp (F) 240°F
Min Temp (F) 20°F
Position Normally Open
Series Zone Sentry
Size 3/4"
Temperature Range (F) 20°F - 240°F
Type Zone Valve
Voltage 24v
Wiring Plug-In 4 Wire Screw Terminals
