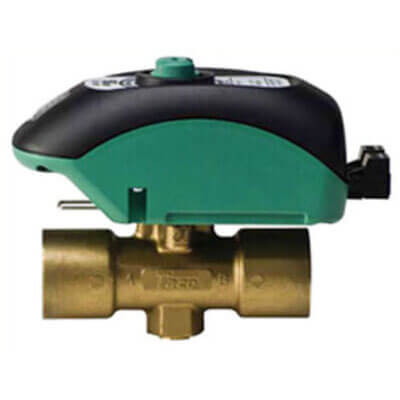

V075T2A2ZALNVE2A1 | 3/4" Zone Sentry Valve, Normally Closed. Multi-Volt (Threaded) | Taco
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V075T2A2ZALNVE2A1
Documents and manuals
Taco V075T2A2ZALNVE2A1 Documents
Overview
Details for V075T2A2ZALNVE2A1
3/4" Zone Sentry Valve, Normally Closed. Multi-Volt (Threaded)
![](https://supplyfile.com/images/taco/badge_taco.png)
Zone Sentry Zone Valves
Taco Zone Sentry ® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Performance Data
Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)
Features
- Up to 93% less energy usage
- Universal Installation Orientation
- Usable on Condensing Chilled Water Installations
- 12 valves on one 40VA transformer
- Multi-Function LED
- Quick Connect Wiring
- Push button actuator replacement
- Easy wire quick connections Manual override button
- Positional indicator
Applications
Zone Sentry
- Hydronic Heating and Cooling
Geo-Sentry®
- Open or Closed Loop Geothermal Systems with Water Source Heat Pumps
Potable Water Zone Sentry
- Combination Domestic Water and Hydronic Heating System
- Water Shut Off to a Potable System
3/4" Zone Sentry Valve, Normally Closed. Multi-Volt (Threaded)
One valve takes the place of many. The Multi-Volt Zone Sentry will accept input voltages between 120 and 277VAC 50/60HZ. The Multi-Volt Zone Sentry zone valve is designed for use in hydronic HVAC systems, primarily in fan coils and air handlers or other HVAC systems where a quality line voltage zone valve is required. The Zone Sentry can be installed in both heating and cooling applications and is available in a normally closed or normally open configuration.
Specifications:
- Max. Operating Pressure: 300 PSI (2100 kPa)
- Max. Shutoff Pressure: 125 PSI (875 kPa)
- Max. Ambient Temp.: 135 F
- Fluid Temp. Range: 20-220 F (-7-104 C)
- Seat Leakage: Drop-Tight Close-Off
- Electrical Rating: 120 VAC to 277VAC, 1Ph, 50/60Hz
- Power Consumption: 4 Watts
- Power Consumption: 1.5 Watts
- Max. Duty Cycle: 1 Cycle/Minute
- Body Material: Forged Brass
- Stem Material: Brass
- Press Ring Material: Brass
- Ball Material: Brass (Chrome Plated)
- Seat Material: Modified Teflon
- O-Rings Material: EPDM
Specifications
Item Number | V075T2A2ZALNVE2A1 |
Brand | Taco |
Body Pattern | 2-Way |
Connection Type | Threaded |
Position | Normally Closed |
Product Type | Zone Valve |
Series | Zone Sentry |
Size | 3/4" |
Type | Zone Valve |
Voltage | 120-277v |
