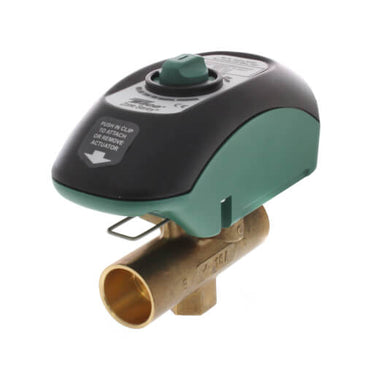

V075C2A2ZALNVE2A1 | 3/4" 2-Way Sentry Zone Valve Normally Closed (Sweat) | Taco
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V075C2A2ZALNVE2A1
Documents and manuals
Taco V075C2A2ZALNVE2A1 Documents
Overview
Details for V075C2A2ZALNVE2A1
3/4" 2-Way Sentry Zone Valve Normally Closed (Sweat)
![](https://supplyfile.com/images/taco/badge_taco.png)
Zone Sentry Zone Valves
Taco Zone Sentry ® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Performance Data
Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)
Features
- Up to 93% less energy usage
- Universal Installation Orientation
- Usable on Condensing Chilled Water Installations
- 12 valves on one 40VA transformer
- Multi-Function LED
- Quick Connect Wiring
- Push button actuator replacement
- Easy wire quick connections Manual override button
- Positional indicator
Applications
Zone Sentry
- Hydronic Heating and Cooling
Geo-Sentry®
- Open or Closed Loop Geothermal Systems with Water Source Heat Pumps
Potable Water Zone Sentry
- Combination Domestic Water and Hydronic Heating System
- Water Shut Off to a Potable System
Taco Zone Sentry Zone Valves provide on-off, normallyopen or normally closed control in both open and closed hot or chilled water systems. The valves can be used in a wide variety of heating and cooling applications, primarily designed for use with fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
The Zone Sentry is the most technologically advancedzone valve ever made. It's also simple to install and operate. The valve can be installed in any direction, in any orientation. Taco then went a step further, allowing the operator to be mounted to the valve body in either direction (see Figure A of the manual in the "Manuals" tab), great for those tight baseboard jobs.Snap-in quick connects on the back of the valve makefor a simple, secure and fast wiring hook-up. A greenLED light shows full functionality of the valve's operation and thermostat status. Under a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90° and is also marked with a slot to indicate the position of the valve.
Specifications
Item Number | V075C2A2ZALNVE2A1 |
Brand | Taco |
Application | Zoning |
Body Pattern | 2-Way |
Connection Type | Sweat |
Hertz | 60 |
Material | Forged Bronze |
Max Close-Off PSI | 125 psi |
Max Pressure (PSI) | 300 |
Position | Normally Closed |
Series | Zone Sentry |
Size | 3/4" |
Temperature Range (F) | 20°F - 240°F |
Type | Zone Valve |
Voltage | 120-277v |
