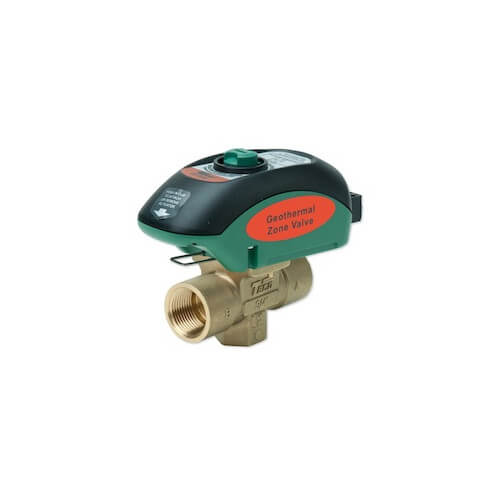

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V050T2G2ZA024Q4A2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco V050T2G2ZA024Q4A2 Documents

Datasheet Installation Instructions More Info

Overview

Details for V050T2G2ZA024Q4A2

1/2" Geo-Sentry GeoThermal Zone Valve - Threaded, Normally Closed

Zone Sentry Zone Valves

Taco Zone Sentry ^® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features

Up to 93% less energy usage
Universal Installation Orientation
Usable on Condensing Chilled Water Installations
12 valves on one 40VA transformer
Multi-Function LED
Quick Connect Wiring
Push button actuator replacement
Easy wire quick connections Manual override button
Positional indicator

Applications

Zone Sentry

Hydronic Heating and Cooling

Geo-Sentry^®

Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

Potable Water Zone Sentry

Combination Domestic Water and Hydronic Heating System
Water Shut Off to a Potable System

The Taco Geo-Sentry Zone Valve enhances the overall performance of any geothermal system.The unique patented technology in the Geo-Sentryutilizes a microcircuit based logic to controla gear driven electronic actuator which drives a ball valve based body design. All this adds up toa geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoffpressure rating, ease of installation, diagnostic capability and the number of valves (12) that canbe used on a standard 40VA transformer.

Specifications

Item Number	V050T2G2ZA024Q4A2
Brand	Taco
Application	Zoning
Body Pattern	2-Way
Close Off Pressure	125 psi
Connection Type	Threaded
End Switch	Yes
Flow Capacity (Cv)	4.9
Max Pressure (PSI)	300
Position	Normally Closed
Series	Zone Sentry
Size	1/2"
Type	Zone Valve
Voltage	24v
