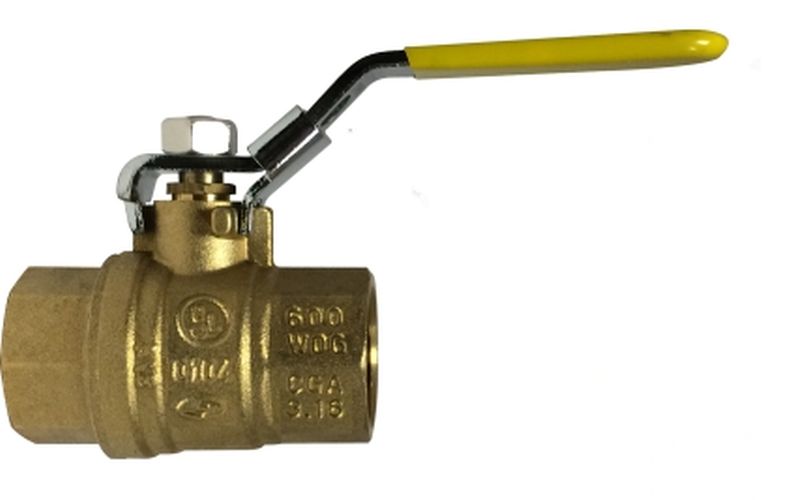

940174 | 3/4IN 600 WOG FULL PORT BALL VALVE | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 940174
Midland Metal Mfg. | 940174
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 940174
Jump to: Overview & Specifications Reviews

Overview Details for 940174

3/4IN 600 WOG FULL PORT BALL VALVE, Valves, Full Port Ball Valves, Full Port Ball Valves 600 WOG CSA UL FM

Specifications

Item Number 940174
Brand Midland Metal Mfg.
Additional Information 150 psi WSP Saturated Steam Pressure; 3 /4-1 4 Thread Size; 0.670 lb Weight
Ball Material Chromium-Plated Brass
Body Material Forged Brass
Category Valves
Connection Type FNPT x FNPT
Description Full Port Ball Valves 600 WOG CSA UL FM
Dimensions 2.36 in L
Domestic/Import Import
Handle Material Steel
Inlet to Outlet Length 2.36 in
Material Brass
Nominal Size 3/4 in
Operator Type Handle
Port Type Full
Pressure Rating 600 psi WOG
Seal Material PTFE
Seat Material PTFE
Section Full Port Ball Valves
Shape Valve
Stem Material Brass
Temperature Rating -22 to 302 deg F
Top to Inlet Center 2.3 in
Trim Material Brass Gland/Steel Nut and Spring Inseat
