QT075C2-1 | 3/4" QuickTop Zone Valve (Sweat) | Taco
Documents and manuals
Taco QT075C2-1 Documents
Overview
Details for QT075C2-1

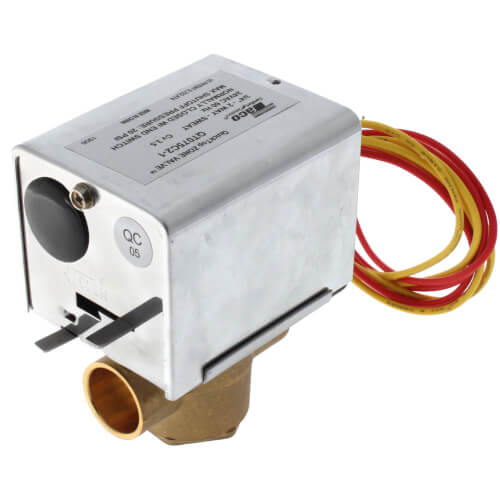

3/4" QuickTop Zone Valve (Sweat)
![](https://supplyfile.com/images/taco/badge_taco.png)
Synchronous Motor Zone Valve
The QuickTop Zone Valves® provide on-off, normally closed control in closed hydronic systems. The valves can be used in a wide variety of heating and cooling applications. Use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.
Taco QuickTop Zone Valves® provide a convenient way to create individual zones or equipment isolation in closed loop hydronic systems. Utilizing one pump with multiple zone valves, flow can be started or stopped through the system providing individual room or area comfort, control and energy savings. QuickTop Zone Valves® are offered with 1/2”, 3/4” or 1” sweat connections, and comes with Taco’s trusted quality & reliability.
An affordable replacement for normally-closed, synchronous motor zone valves.
Performance Data
Static Pressure Rating: 300 PSI
Close-off Pressure: 15 – 20 PSI
Ambient Temp.: 32° – 125° F
Fluid Temp. Range: 32° – 200° F
Features
Applications
- Closed Hydronic Heating & Cooling
- Water or Water/Glycol up to 50% Glycol, Closed Systems
Taco® QuickTop Zone Valves provide a convenient way to create individualzones or equipment isolation in closed loop hydronic systems. Utilizingone pump with multiple zone valves, flow can be started or stoppedthrough the system providing individual room or area comfort, controland energy savings. The QuickTop Zone Valve is offered with 1/2”, 3/4” or 1”sweat connections, and comes with Taco’s trusted quality & reliability.
Application
Taco® QuickTop Zone Valves provide on-off,normally closed control in closed hydronicsystems. The valves can be used in a widevariety of heating & cooling applications.Use with baseboard, fan coils, radiators,convectors, air handlers, heat pumpsand radiant applications.
Product Specifications
- Static Pressure Rating - 300 PSI
- Close-off Pressure - 15 - 20 PSI
- Ambient Temperature - 32° - 125° F
- Fluid Temp. Range - 32° - 200° F
- Normally closed
- 5W, 7.2 VA
- Service - Water or Water/Glycol up to 50% Glycol, Closed Systems
Specifications
Item Number | QT075C2-1 |
Brand | Taco |
Amperage | 7.2 |
Body Pattern | 2-Way |
Connection Type | Sweat |
End Switch | Yes |
Flow Capacity (Cv) | 3.5 |
Media | Water or Glycol up to 50% |
Position | Normally Closed |
Series | QuickTop Zone Valve |
Size | 3/4" |
Static Pressure | 300 psi |
Temperature Range (F) | 32°F to 200°F |
Type | Valve |
Voltage | 24v |
Wattage | 5 |
