Details for ACT02F-150R
Air Separator (Tangential) | 2" | Threaded | 150PSI | Strainer | Base Ring

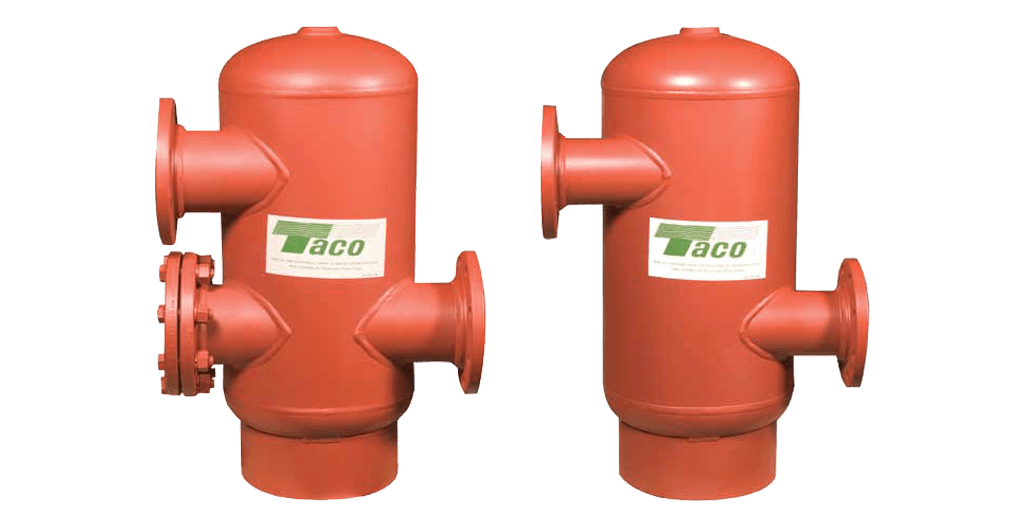

Taco ACT Series Tangential Air Separators deliver all the quality and performance you expect from Taco products. The highly efficient Tangential design helps clear the system of free air and reduces un-dissolved sediment to save money, energy and component wear. Taco ACT Series Tangential Air Separators Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the air separator tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.
Performance Data
GPM: Up to 10,000
Connection Sizes: 2-36″
Sizes: 12″ dia. x 26″ height – 84″ dia.. X 211″ height
Working Pressure: 125,150 PSI Standard (250, 300PSI, Higher Pressures Optional)
Max. Operating Temp.: 375F (Optional Higher Temperatures Available)
Features
- Designed, constructed and tested to ASME Section VIII, Div. 1 requirements
- Available with removable SS Strainer
- Higher max. pressures available
- All fabrication done in-house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
Applications
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
Specifications
| Item Number | ACT02F-150R |
| Brand | Taco |
| Fitting | Threaded |
| Option | Base Ring |
| Option | Strainer |
| Pressure | 150PSI |
| Series | ACT |
| Size | 2" |
| Type | Air Separator |
