417-3 | Coin Vent | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 417-3

Jump to: Overview Specifications Reviews

Overview

Details for 417-3

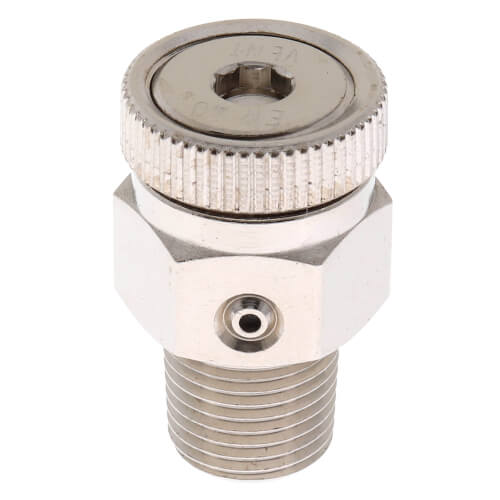

Coin Vent

Installed on water or stream radiators the Taco automatic coin vent is the ideal air purging device. The coin vent features special hygroscopic cellulose discs in the valve body. When dry the discs allow air to be released from the system. Once all the air is purged the discs would then come in contact with system water, where upon they would swell to create a positive shut-off. This continuous cycle prevents the radiators from becoming air bound and speeds the process of filling the system. The vent can also be manually shut-off by means of an internal ball check. The 417 coin vent is suitable for use in water and low pressure steam applications.

Specifications

Item Number	417-3
Brand	Taco
Adjustability	Non-Adjustable
Application	Heating
Body Pattern	Straight
Material	Brass
Max Pressure	125 psi
Max Temp (F)	240°F
Max Venting Pressure (PSI)	125 psi
Min Temp (F)	140°F
Mount	Straight
Size	1/8"
System Type	Hydronic (Water)
Temperature Range (F)	140°F - 240°F
Thread Size	1/8"
Thread Type	Male
Type	Accessory
