AC04-125R | Air Separator | 4" | Flanged | 125PSI | Base Ring | Taco
Documents and manuals
Taco AC04-125R Documents
Overview
Details for AC04-125R
Air Separator | 4" | Flanged | 125PSI | Base Ring

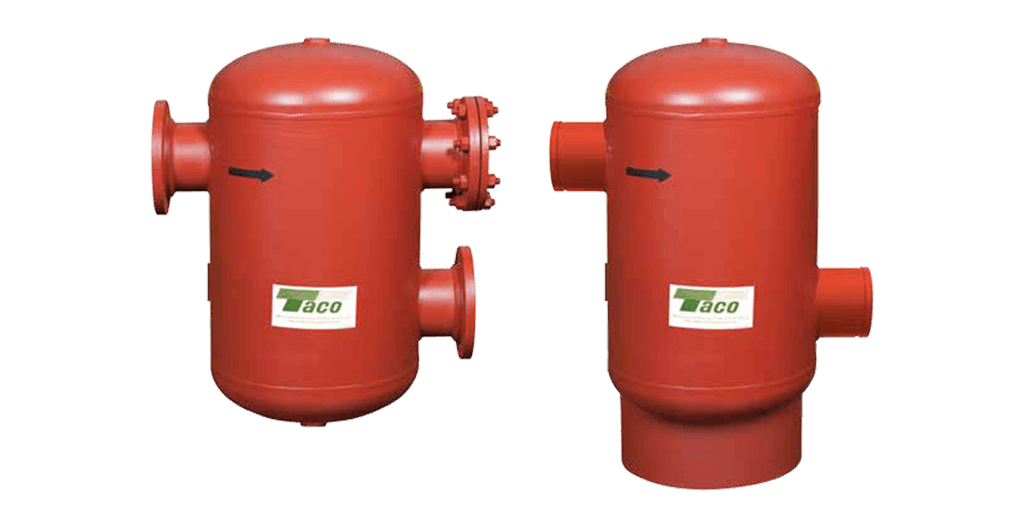

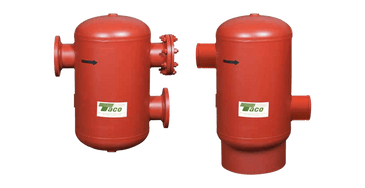

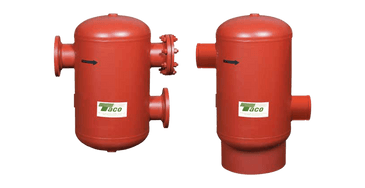

Taco AC/ACF Series In-Line Air Separator deliver all the quality and performance you expect from Taco products. Through the use of its internal baffle design, AC/ACF Series In-Line Air Separator work great in both constant and variable flow systems. Taco AC/ACF Series In-Line Air Separator tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product a helps you choose the Air Separator Tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.
Performance Data
GPM: Up to 30,500
Connection Sizes: 2-36″
Sizes: 12″ dia. x 22″ height – 84″ dia.. X 181″ height
Working Pressure: 125,150, 250, 300PSI Standard (Higher pressures Optional)
Max. Operating Temp.: 375F (Optional Higher Temperatures Available)
Features
- Designed, constructed and tested to ASME Section VIII, Div. 1 requirements
- Available with removable SS Strainer
- Higher max. pressures available
- All fabrication done in-house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
Applications
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
Specifications
| Item Number | AC04-125R |
| Brand | Taco |
| Fitting | Flanged |
| Option | Base Ring |
| Pressure | 125PSI |
| Series | AC/ACF |
| Size | 4" |
| Type | Air Separator |
