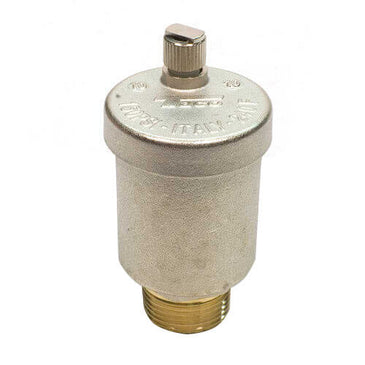

418-4 | 1/2" FNPT x 3/4" MNPT Hy-Vent | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 418-4

Jump to: Overview Specifications Reviews

Overview

Details for 418-4

1/2" FNPT x 3/4" MNPT Hy-Vent

Replaces 418-3

You already know Taco Hy-Vents as the industry standard for dependable, long-life service. The high-capacity, float-style vent can be placed either on the boiler or at the high points throughout the system. With threaded connections--1/8", 1/4", 1/2" and 3/4" --and operating pressure ratings up to 150 psi, these brass-body, nickel-plated vents meet the system requirements of even your largest installations. Vents are easily serviceable, if needed, by simply unscrewing the vent cap. Taco Hy-Vents are available in a variety of styles including the Slim-Line Hy-Vent and High Pressure Hy-Vent.

Specifications

Item Number	418-4
Brand	Taco
Adjustability	Non-Adjustable
Application	Heating
Body Pattern	Straight
Material	Brass
Max Pressure	150 psi
Max Temp (F)	240°F
Max Venting Pressure (PSI)	50 psi
Min Temp (F)	140°F
Mount	Straight
Size	1/2" x 3/4"
System Type	Hydronic (Water)
Temperature Range (F)	140°F - 240°F
Thread Size	3/4"
Thread Type	Female
Type	Accessory
Type	Float-Style
