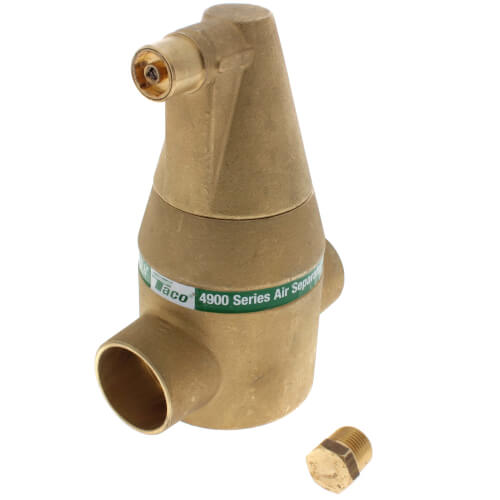

49-150C-2 | Separator | Air | Threaded | 1-1/2" | 150 PSI | Bronze | In-Line | Taco
Documents and manuals
Taco 49-150C-2 Documents
Overview
Details for 49-150C-2
Separator | Air | Threaded | 1-1/2" | 150 PSI | Bronze | In-Line
4900 Series Bronze Air Separators
The Taco 4900 Series ® Bronze Air Separators are designed for the complete elimination of air from closed loop heating and cooling systems up to a maximum temperature of 240°F and a maximum pressure of 150 PSI. The principle on which the 4900 Series ® Bronze Air Separators is based is a patented and proven method of removing gases from water: the PALL ring process. The ultimate micro-bubble separation of the PALL Ring Process eliminates
the damaging effects and irritating noise caused by unwanted system air.
Performance Data
Maximum Operating Pressure: 150 PSI
Max. Operating Temperature: 240°F
Min. Operating Temperature: 25°F
Media: Water or Water/Glycol up to 50%
Max. Velocity: 5 feet/sec
Features
- Connection Sizes (in.): 3/4 – 2
- Available in Press Sweat, NPT
- Patented PALL Ring Design
- Eliminates air induced system noise
- Minimal pressure loss
- Vent can be closed
- Large surface contact area
- Protective vent plate
- Rugged dependability
- Maximum air removal
- Convenient expansion tank connection tapping
- No minimum run of pipe requirement
- Bidirectional flow
Applications
- Hydronic Heating & Cooling
The Taco 4900 Series Air Separators help you save money and prolong the life of system pumps, piping and components by removing air and dirt from the system to prevent reduced heat transfer, loss of efficiency, pipe corrosion, pump damage, increased energy consumption, and irritating noise.
Specifications
| Item Number | 49-150C-2 |
| Brand | Taco |
| Application | Heating |
| Connection Method | Sweat |
| Connection Type | C x C |
| Fitting | Threaded |
| Material | Brass |
| Max Pressure (PSI) | 150 |
| Max Temp (F) | 240°F |
| Pressure Rating | 150 PSI |
| Product Type | Air Eliminator |
| Separator Type | Air |
| Size | 1-1/2" |
| Size | 1.5" |
| Type | Air Separator |
