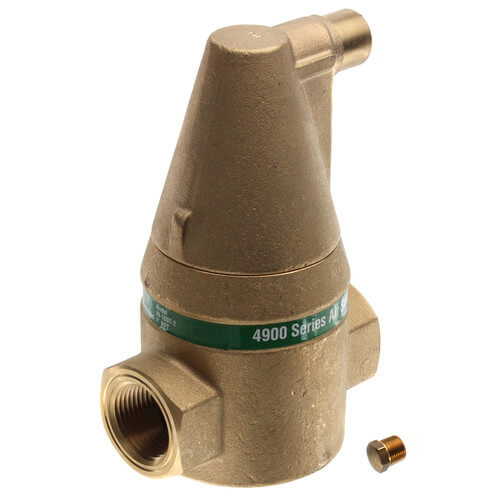

49-100T-2 | Separator | Air | NPT | 1" | 150 PSI | Bronze | In-Line | Taco

Brand: TacoSKU: 49-100T-2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 49-100T-2

Jump to: Overview & Specifications Reviews

Overview Details for 49-100T-2

Separator | Air | NPT | 1" | 150 PSI | Bronze | In-Line

4900 Series Bronze Air Separators

The Taco 4900 Series ^® Bronze Air Separators are designed for the complete elimination of air from closed loop heating and cooling systems up to a maximum temperature of 240°F and a maximum pressure of 150 PSI. The principle on which the 4900 Series ^® Bronze Air Separators is based is a patented and proven method of removing gases from water: the PALL ring process. The ultimate micro-bubble separation of the PALL Ring Process eliminates
the damaging effects and irritating noise caused by unwanted system air.

Performance Data

Maximum Operating Pressure: 150 PSI
Max. Operating Temperature: 240°F
Min. Operating Temperature: 25°F
Media: Water or Water/Glycol up to 50%
Max. Velocity: 5 feet/sec

Features

Connection Sizes (in.): 3/4 – 2
Available in Press Sweat, NPT
Patented PALL Ring Design
Eliminates air induced system noise
Minimal pressure loss
Vent can be closed
Large surface contact area
Protective vent plate
Rugged dependability
Maximum air removal
Convenient expansion tank connection tapping
No minimum run of pipe requirement
Bidirectional flow

Applications

Hydronic Heating & Cooling

The Taco 4900 Series Air Separators help you save money and prolong the life of system pumps, piping and components by removing air and dirt from the system to prevent reduced heat transfer, loss of efficiency, pipe corrosion, pump damage, increased energy consumption, and irritating noise.
Body Type: Brass

Specifications

Item Number	49-100T-2
Brand	Taco
Application	Heating
Connection Method	Threaded
Connection Type	FNPT x FNPT
Fitting	NPT
Material	Brass
Max Pressure (PSI)	150
Max Temp (F)	240°F
Pressure Rating	150PSI
Product Type	Air Eliminator
Separator Type	Air
Size	1"
Type	Air Separator
