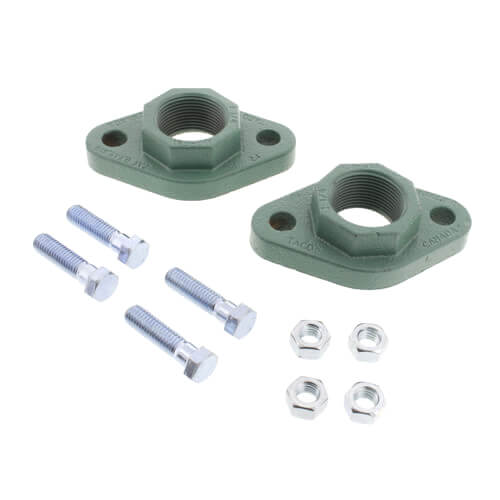

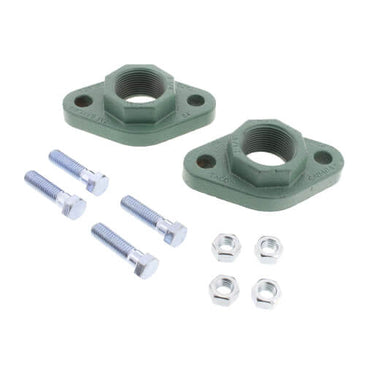

194-1540F | FREEDOM FLANGE SET | IRON | 1 1/4" NPT | Taco

Taco | 194-1540F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 194-1540F

Documents and manuals

Taco 194-1540F Documents

Overview

Details for 194-1540F

FREEDOM FLANGE SET | IRON | 1 1/4" NPT

Freedom Flange

Taco Freedom Flange® fits all “00” Circulators and free you from scraped knuckles and jury rigged tools. Easy-On/Easy-Off and sweat designs, and two-piece bronze shut-off valves let you make quick work of pump installation and maintenance.

Lead-Free Shut-Off Freedom Flange®

Taco Lead-Free Shut-Off Freedom Flange combines a full-port shut-off ball valve and companion flange to isolate system circulators for easy removal and service, without draining the system. Simplify your next circulator installation while saving material and labor costs. Solid brass uni-body construction, available in ½”–1½” Press, NPT or Sweat connections. The swivel-flange provides easier installation allows you to position the pump and lever handle in the most convenient location.



Performance Data

Freedom Flange®
Max. Water Pressure: 150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-3″ NPT, ½”-1½” Sweat

Lead-Free Shutoff Freedom Flange®

Max. Water Pressure:  150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-1½” Press, ½”-1½” NPT,  ½”-1½” Sweat



Features

Freedom Flange®

  • Freedom Flange Fits All “00” Circulators
  • Available in ductile iron or stainless steel NPT, bronze Sweat
  • Unique Hex Design Provides Easy-On, Easy-Off Installation with a Standard Adjustable Wrench

Lead-Free Shutoff Freedom Flange®

  • Easy ¼-Turn Open/Close operation
  • Positive Shut-Off, Leak Free Design
  • Swivel-Flange Allows 360˚ Rotation
  • Solid Lead-Free Brass Construction
  • Chrome/Brass Valve Ball
  • High Quality Teflon® Seats
  • Full Port Ball Valve for UnrestrictedFlow
  • Includes Bolts and Nuts
Applications
  • Domestic Hot Water RecirculationSystems
  • Hydronic Heating & Chilled Water Cooling
  • Solar / Geothermal Systems
  • Radiant Heating Systems

  • Cast-iron threaded freedom flange
  • For 0012-F4, 1400-30, 1400-40, 2400-30, 2400-40

Specifications

Item Number 194-1540F
Brand Taco
Connection Size 1-1/4"
Connection Type Threaded
Fitting NPT
Material Cast Iron
Material Iron
Series Freedom Flanges
Size 1-1/4"
Type Accessory
Type Pump Flanges
Used With 1400-40 Pumps
