Documents: 185-112S

Datasheet More Info

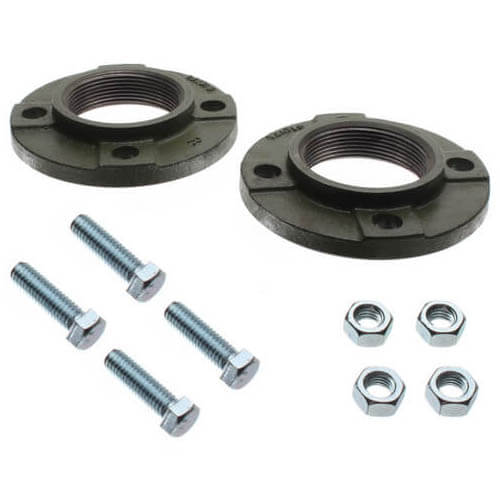

185-112S | 2-1/2" Stainless Steel 4-bolt threaded Flange for 1400-70B/3 | Taco

Brand: TacoSKU: 185-112S

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 185-112S

Jump to: Overview & Specifications Reviews

Overview Details for 185-112S

2-1/2" Stainless Steel 4-bolt threaded Flange for 1400-70B/3

Freedom Flange

Taco Freedom Flange^® fits all “00” Circulators and free you from scraped knuckles and jury rigged tools. Easy-On/Easy-Off and sweat designs, and two-piece bronze shut-off valves let you make quick work of pump installation and maintenance.

Lead-Free Shut-Off Freedom Flange^®

Taco Lead-Free Shut-Off Freedom Flange combines a full-port shut-off ball valve and companion flange to isolate system circulators for easy removal and service, without draining the system. Simplify your next circulator installation while saving material and labor costs. Solid brass uni-body construction, available in ½”–1½” Press, NPT or Sweat connections. The swivel-flange provides easier installation allows you to position the pump and lever handle in the most convenient location.

Performance Data

Freedom Flange^®
Max. Water Pressure: 150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-3″ NPT, ½”-1½” Sweat

Lead-Free Shutoff Freedom Flange^®

Max. Water Pressure: 150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-1½” Press, ½”-1½” NPT, ½”-1½” Sweat

Features

Freedom Flange^®

Freedom Flange Fits All “00” Circulators
Available in ductile iron or stainless steel NPT, bronze Sweat
Unique Hex Design Provides Easy-On, Easy-Off Installation with a Standard Adjustable Wrench

Lead-Free Shutoff Freedom Flange^®

Easy ¼-Turn Open/Close operation
Positive Shut-Off, Leak Free Design
Swivel-Flange Allows 360˚ Rotation
Solid Lead-Free Brass Construction
Chrome/Brass Valve Ball
High Quality Teflon^® Seats
Full Port Ball Valve for UnrestrictedFlow
Includes Bolts and Nuts

Applications

Domestic Hot Water RecirculationSystems
Hydronic Heating & Chilled Water Cooling
Solar / Geothermal Systems
Radiant Heating Systems

Fits all Stainless Steel 00® circulators, 110 Series and 2400 Series
Easy-On, Easy-Off with a common adjustable wrench
NSF-372 Certified for low lead
Nuts & Bolts included

**Image depicted is not reflective of actual product.

Specifications

Item Number	185-112S
Brand	Taco
Connection Size	2-1/2"
Connection Type	4-Bolt Threaded (IPS) Flange
Material	Stainless Steel
Series	Freedom Flanges
Type	Accessory
Type	Pump Flanges
Used With	1400-70/3 Pumps
