007-VDTF5 | Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 007 | Taco

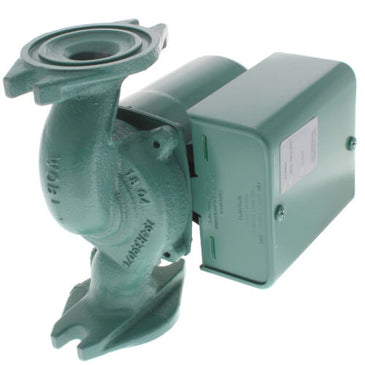

Taco | 007-VDTF5
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 007-VDTF5

Documents and manuals

Taco 007-VDTF5 Documents

Overview

Details for 007-VDTF5

Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 007

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features
  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
Applications
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Taco Variable Speed Delta-T Circulator's all-in-one design combines a microprocessor based variable speed differential controller with the reliability and convenience of the 00® Cartridge Circulators. Simply dial in the design Delta-T of the system or zone (from 5 - 50°F) and then sit back and watch the circulator automatically adjust its performance to match the systems ideal BTU/hr output, while conserving energy and eliminating velocity noise.

No matter how good your original system design and heat loss calculations were, they included estimates and rules of thumb. What are the design conditions for those systems you "inherited" or have to service? Have a zone valve system or multi-zone radiant manifolds running off a common circulator? Your system needs a circulator that automatically adjusts to deliver the optimal heat transfer based on the actual operation of the system, every day, under all load conditions - even when those conditions change. With the Taco Variable Speed Delta-T 00® Circulators you simply dial in your desired temperaturedrop across the system or zone (5-50°F), attach a supply and return sensor directly to the pump and it will automatically vary its performance to deliver optimal heat, efficiency and comfort.

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 007-042RP

Features:
  • All-in-One Pump & Control
  • Sensors Included
  • Easy to Install: Attach 2 Sensors, dial in the Desired Delta-T
  • UL Approved
  • Snap-in PC Board, replaceable
  • LED Status Panel
  • Fuse Protected
  • Plug-in Low Voltage Wiring Terminal
  • Optional Integral Flow Check (IFC®)
  • Increases System Efficiency
  • Pump Always Runs at Minimum Required Speed
  • Eliminates Velocity Noise
  • Eliminates Need for a Pressure By-pass Valve
  • Conserves Energy
  • Achieves System Design Goals, even when Installed System Varies from Original Design
  • Pump Automatically Adjusts to Current System Conditions
  • Spend Less Time Figuring Out Pressure Drop (for proper pump sizing) when Servicing Existing Systems.
  • Pump Exercise
  • Delivers Ideal BTU/hr Heat Transfer for All Styles of Emitters

Specifications

Item Number 007-VDTF5
Brand Taco
Amps 1.33A
Application Heating
Connection Type Flanged x Flanged
Connection Flanged
Hertz 60
Horse Power 1/25
HP 1/25 HP
Material Cast Iron
Max Flow 52 GPM
Max Head Pressure 14.5ft
Max Pressue 125 PSI
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump (Variable Speed)
RPM 3250 RPM
RPM Variable
Series Series 007
Type Pump
Type Var. Speed Pump
Voltage 115v
Warranty 3 Year
