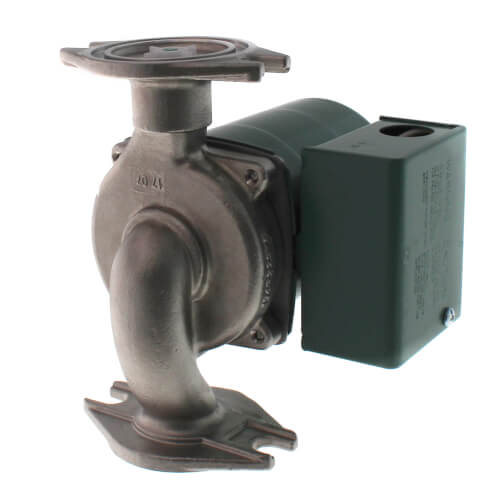

0015-MSSF3-1IFC | Circulator Pump | Stainless Steel | 1/20 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0015 | Taco
Overview Details for 0015-MSSF3-1IFC
Circulator Pump | Stainless Steel | 1/20 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0015
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today?s hydronic heating systems. Its? 3-Speed switching capa-bility provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance. The Stainless Steel 0015 should be used on open, fresh water systems.
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 0015-001RP
Valve Assembly Trans/Relay: 0010-025RP
Features:
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- 4-bolt universal flange (0010 only)
- Removable high-flow Integral Flow Check (IFC)
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
- Stainless steel, flanged construction
Specifications
Item Number | 0015-MSSF3-1IFC |
Brand | Taco |
Amperage | 0.71-0.98 |
Amps | 1.65A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-18 |
Head Range (ft.) | 0-21 |
Hertz | 60 |
Horse Power | 1/20 |
HP | 1/20 HP |
Material | Stainless Steel |
Max Flow (GPM) | 18 |
Max Flow | 42 GPM |
Max Head (Ft) | 21 |
Max Head Pressure | 14ft |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Optional | Integral Flow Check |
Optional | Multi Speed |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 0015 |
Temperature Range (F) | 40°F to 230°F |
Type | 3-Speed Pump |
Type | Pump |
Voltage | 115v |
Warranty | 3 Year |
