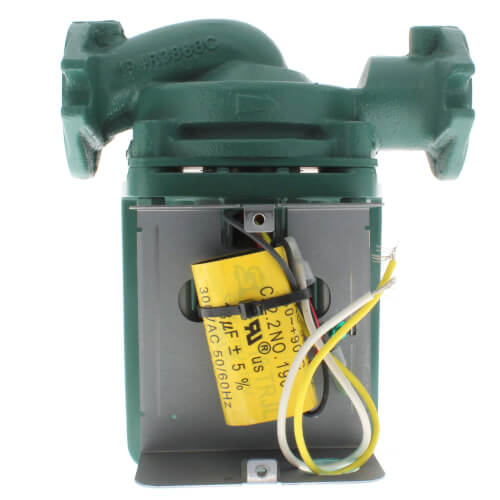

0013-VSF3 | Circulator Pump (Variable Speed) | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013 | Taco

Circulator Pump (Variable Speed) | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The High Velocity series Taco 0013 Cartridge Circulator is designed for quiet, efficientoperation in high head / high flow applications for Large Residential / Light CommercialHydronic heating, Radiant heating, Chilled Water cooling and Domestic fresh water systems.The exclusive ACB anti-condensate baffle with ambient air flow prevents the build upof condensate on the motor windings when pumping chilled water. Its unique field-serviceablecartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With nomechanical seal, the self-lubricating, maintenance free design provides unmatched reliability.Compact and lightweight, with excellent performance characteristics, the 0013 is ideal for highefficiency jobs where space is a premium.

Features

• Maximum Temperature Control: Taco's 00-VS circulators support an adjustable setpoint as well as an adjustable temperature differential. Whether you need a fixed temperature or a set temperature drop, this circulator has you covered.
• Direct and Reverse Acting: Taco's variable speed setpoint circulators are designed for both direct acting and reverse acting applications. These versatile pumps can be set to increase speed when temperatures drop or when they rise depending on the needs of your system.
• Maintenance Free: The beauty of Taco's "00" series circulators is in the simplicity. The self-lubricating design improves reliability by eliminating the need for a mechanical seal.
• Replaceable Cartridge Design: All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
• High Capacity, High Efficiency: In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
