0010-F3-1IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Integral Flow Check | Series 0010 | Taco
Documents and manuals
Taco 0010-F3-1IFC Documents
Overview
Details for 0010-F3-1IFC
Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.1A | 3250 RPM | Flanged | 30 GPM | 9ft Max Head | 150 PSI Max Press. | Integral Flow Check | Series 0010
![](https://supplyfile.com/images/taco/badge_taco.png)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems

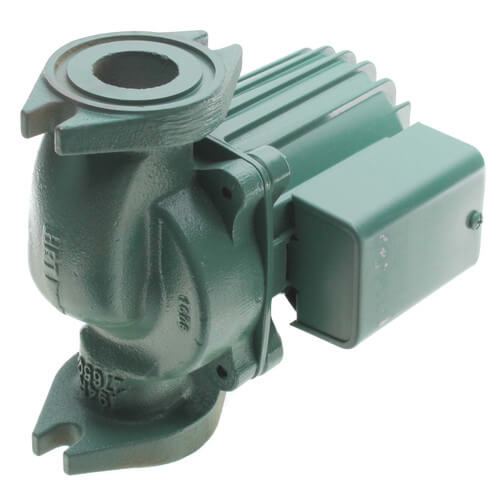

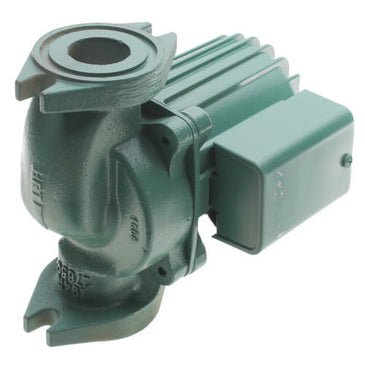

Cast Iron Taco 0010-F3-1IFC Circulator Pump with an Integral Flow Check (IFC) is designed to reduce installation costs when using Taco 0010 circulators. The bulit-in IFC increases the flow performance when compared to regular in-line check valve. Taco 0010-F3-1IFC model can be used for medium head, medium/higher flow residential or light commercial applications such as hydronic heating, radiant floor heating, and hydro-air fan coils. Both the IFC (Integral Flow Check) and circulator pump cartridge are easily accessed for service and eliminate the need for replacing the entire unit.
Applications:
- Hydronic Heating/Cooling
- Radiant Heating
- Zoning with Pumps
- Hydro-Air Fan Coils
Features:
- Integral Flow check (IFC) Patent #5,664,939
- Prevents gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost, easy to service
- Improved performance vs. In-line flow checks
- Unique replaceable cartridge-Field serviceable
- Unmatched reliability-Maintenance free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output-Compact design
- Wide range of applications
- Cast Iron or Bronze construction, Flanged connections
Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0010-021RP
Valve Addembly Trans/Relay: 0012-021RP
Specifications
Item Number | 0010-F3-1IFC |
Brand | Taco |
Amperage | 1.1 |
Amps | 1.1A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-30 |
Head Range (ft.) | 0-9 |
Hertz | 60 |
Horse Power | 1/8 |
HP | 1/8 HP |
Material | Cast Iron |
Max Flow (GPM) | 30 |
Max Flow | 30 GPM |
Max Head (Ft) | 9 |
Max Head Pressure | 9ft |
Max Pressue | 150 PSI |
Max Pressure (PSI) | 125 |
Optional | |
Optional | Integral Flow Check |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 0010 |
Temperature Range (F) | 40°F to 230°F |
Type | Pump |
Voltage | 115v |
Warranty | 3 Year |
