TP834 | 3/4" Temperature and Pressure Relief 150 PSIG | Apollo Products

Apollo Products | TP834

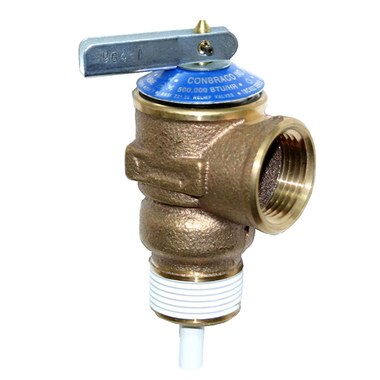

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TP834

Documents and manuals

Apollo Products TP834 Documents

Overview

Details for TP834

**Apollo Products TP834 3/4" Temperature and Pressure Relief Valve** The Apollo Products TP834 is an automatic temperature and pressure relief valve designed for protecting water heaters and other plumbing systems from excessive pressure and temperature. This valve features a unique non-metallic coating that electrostatically applied and thermobonded, providing exceptional resistance to corrosion and extending its service life. Manufactured with a cast bronze body and stainless steel spring, the TP834 offers durability and longevity. It has a 3/4" male NPT inlet and 3/4" female NPT outlet, making it compatible with standard plumbing systems. The element length measures 8", and the valve weighs 64.4 lbs. The TP834 is CSA design certified at all settings to ANSI Z21.22 and ASME Section IV rated at 125 psig and 150 psig settings for 3/4" NPT only. It has a CSA capacity rating of 105,500 BTU/Hr. and meets HUD/FHA requirements. The valve is also CRN #0G0053.6C registered in all Canadian provinces and territories. Key Features and Benefits: * Protects against excessive pressure and temperature * Unique non-metallic coating for enhanced corrosion resistance * Cast bronze body and stainless steel spring for durability * CSA design certified at all settings to ANSI Z21.22 * ASME Section IV rated at 125 psig and 150 psig settings for 3/4" NPT only * CSA capacity rating: 105,500 BTU/Hr. * Meets HUD/FHA requirements * CRN #0G0053.6C registered in all Canadian provinces and territories * Ideal for water heaters and other plumbing systems Our trusted HVAC store is your trusted provider of quality plumbing products from Apollo Products. Contact us today for the best prices and fast shipping!

3/4" Temperature and Pressure Relief 150 PSIG

Specifications

Item Number TP834
Brand Apollo Products
Application Water Heater
End Connection MalexFemale
End to End Distance 11-2/5IN
Material Bronze
Part Number 18C-402-37
Pressure 150PSI
Product Type Temperature and Pressure
Seal Material Silicone
Size 3/4x8IN
Temperature 210DEG F
