1060410 | 3/4" Female High-Capacity Heating System Relief Valve 50 PSIG | Apollo Products

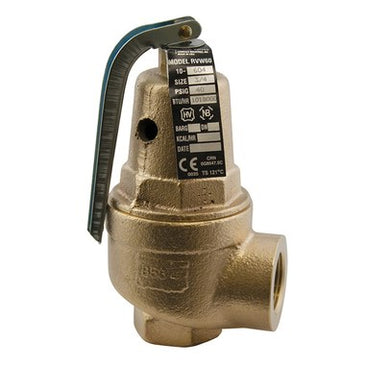

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1060410
Documents and manuals
Apollo Products 1060410 Documents
Overview
Details for 1060410
Protect your heating system from excessive water pressure with the Apollo Products 10-604-10 3/4" Female High-Capacity Heating Relief Valve. This ASME Section IV certified valve features a bronze body and spring cage, silicone seat, and a fabric-reinforced molded diaphragm, providing reliable performance and durability.
Designed with a 3/4" female NPT inlet and outlet, this relief valve boasts a certified pressure range of 15-160 psig and a maximum temperature service of 250 degrees F. Its compact dimensions (1.03" x 5.25" x 1.62") make it suitable for various heating system applications. With a capacity of 1,209,000, this valve ensures effective pressure relief, preventing damage to your heating equipment and ensuring safety. It is also registered in all Canadian Provinces and Territories (CRN #0G8547.5C).
Key Features:
* Female NPT inlet and outlet for easy installation
* Certified pressure range of 15-160 psig for reliable protection
* Bronze construction for durability and corrosion resistance
* Silicone seat and fabric-reinforced molded diaphragm for leak-proof operation
* Maximum temperature service of 250 degrees F for high-pressure heating systems
* Capacity of 1,209,000 for effective pressure relief
* Registered in all Canadian Provinces and Territories for peace of mind
Protect your heating system today with the Apollo Products 10-604-10 3/4" Female High-Capacity Heating Relief Valve. Our trusted HVAC store offers the best prices and fast shipping for your industrial needs. Contact us now to get yours!
3/4" Female High-Capacity Heating System Relief Valve 50 PSIG
Specifications
Item Number | 1060410 |
Brand | Apollo Products |
Application | Hot Water Systems and Hot Water Boilers |
Collection | Pressure Regulating & Relief Valves |
End Connection | Female |
End to End Distance | 5-1/4IN |
Material | Bronze |
Part Number | 10-604-10 |
Pressure | 50PSI |
Product Type | High Capacity |
Seal Material | Silicone |
Size | 3/4IN |
Temperature | 250DEG F |
