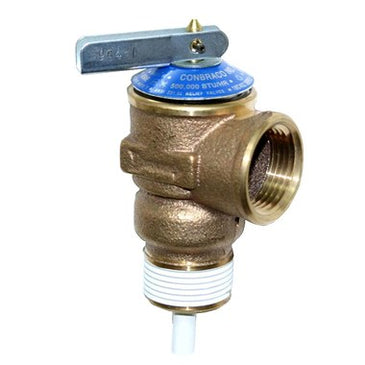

TP334 | 3/4" Temperature and Pressure Relief 150 PSIG | Apollo Products
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TP334
Documents and manuals
Apollo Products TP334 Documents
Overview
Details for TP334
Apollo Products' 3/4" Temperature and Pressure Relief Valve [SKU: TP334] is an essential safety component designed to protect water heater systems from excessive temperature and pressure. Engineered with superior corrosion resistance, this valve features a unique non-metallic coating that isolates the element from heated water, preventing galvanic and electromechanical corrosion. Its electrostatically applied and thermobonded coating ensures optimum adhesion for extended service life.
Certified by CSA and ASME, this valve meets stringent industry standards. With a 3/4" male NPT inlet and 3/4" female NPT outlet, it offers a capacity rating of 105,500 BTU/Hr. and meets HUD/FHA requirements. Constructed with a cast bronze body and stainless steel spring, it can withstand temperatures up to 210 degrees Fahrenheit and pressures of up to 150 PSIG.
Key Features:
* 3/4" NPT inlet and outlet
* Non-metallic coating for corrosion protection
* CSA design certified
* ASME Section IV rated
* Cast bronze body
* Stainless steel spring
* 210 degrees F maximum temperature rating
* 150 PSIG maximum pressure rating
Applications:
* Water heater systems
* Industrial settings where temperature and pressure monitoring is crucial
Our trusted HVAC store offers the best prices and fast shipping on this high-quality product. Protect your water heater system with the Apollo Products 3/4" Temperature and Pressure Relief Valve and shop with confidence at Our trusted HVAC store!
3/4" Temperature and Pressure Relief 150 PSIG
Specifications
Item Number | TP334 |
Brand | Apollo Products |
Application | Water Heater |
End Connection | MalexFemale |
End to End Distance | 6-2/5IN |
Material | Bronze |
Part Number | 18C-402-30 |
Pressure | 150PSI |
Product Type | Temperature and Pressure |
Seal Material | Silicone |
Size | 3/4x4IN |
Temperature | 210DEG F |
