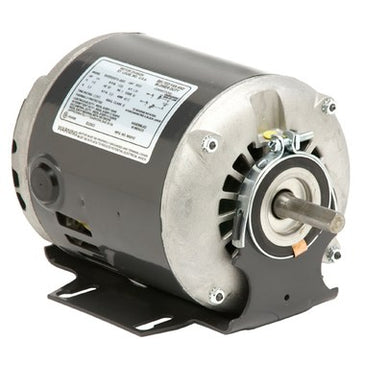

D16B3N4Z9 | Motor General Purpose 1/6 Horsepower 1140 Revolutions per Minute 115 Volt | Us Motor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to D16B3N4Z9
Overview Details for D16B3N4Z9
**General Purpose Motor**
Us Motor's D16B3N4Z9 Motor is a reliable and efficient 1/6 horsepower general purpose motor ideal for a wide range of industrial applications. This versatile motor delivers dependable performance with a compact design, making it a valuable asset for powering various equipment.
**Key Features**
* Horsepower: 1/6 HP
* Speed: 1140 RPM
* Voltage: 115V
* Rotation: Clockwise/Counterclockwise
* Enclosure: Open Drip Proof Split Phase
* Amperage: 4.5AMP
* Phase: 1PH
* Number of Poles: 6P
* Number of Speeds: 1SPD
* Frame Type: 48Z
* Insulation Class: B
* Frequency: 60HZ
* Bearing Type: Ball
* Duty: Continuous
* Mounting Type: Cradle/Stud
**Benefits**
* Durable construction ensures long-lasting operation in demanding environments.
* Versatile motor suitable for a wide range of industrial applications.
* Efficient operation and multiple voltage compatibility provide operational flexibility.
Shop now at Our trusted HVAC store for the best prices and fast shipping on all your industrial products!
Motor General Purpose 1/6 Horsepower 1140 Revolutions per Minute 115 Volt
Specifications
| Item Number | D16B3N4Z9 |
| Brand | Us Motor |
| Amperage | 4.5AMP |
| Bearing Type | Ball |
| Collection | Motors |
| Duty | Continuous |
| Enclosure | Open Drip Proof Split Phase |
| Frame Type | 48Z |
| Frequency | 60HZ |
| Horsepower | 1/6HP |
| Insulation Class | B |
| Mounting Type | Cradle/Stud |
| Number of Poles | 6P |
| Number of Speeds | 1SPD |
| Phase | 1PH |
| Product Type | General Purpose |
| Rotation | Clockwise/Counterclockwise |
| Speed | 1140RPM |
| Voltage | 115V |
