949487 | 1-1/2 Y SPRING CHECK VALVE, Valves, SS Check Valves, Y Spring Type Check Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 949487

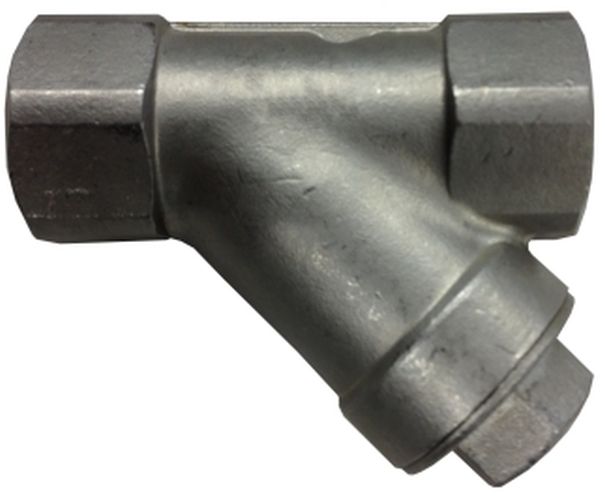

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 949487

1-1/2 Y SPRING CHECK VALVE, Valves, SS Check Valves, Y Spring Type Check Valve

Item Number	949487
Brand	Midland Metal Mfg.
Additional Information	1.5 psi Opening Pressure; 304 Stainless Steel Bolt and Spring; CF8M/CF8 Stainless Steel Cap; 4.724 in Length; 1.575 in ID; 1-1/2-11-1/2 Thread Size; 3.240 lb Weight
Body Material	CF8M/CF8 Stainless Steel
Category	Valves
Connection Type	FPT
Description	Y Spring Type Check Valve
Disc Material	304 Stainless Steel
Domestic/Import	Import
Inlet to Outlet Length	4.724 in
Material	Stainless Steel
Nominal Size	1-1/2 in
Pressure Rating	800 psi
Seal Material	PTFE
Seat Material	PTFE
Section	SS Check Valves
Shape	Y-type
Temperature Rating	-10 to 150 deg C
Top to Inlet Center	3.169 in
