949446 | 1-1/4 BARREL SPRING CHECK VALVE, Valves, SS Check Valves, Barrel Type Spring Check Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 949446

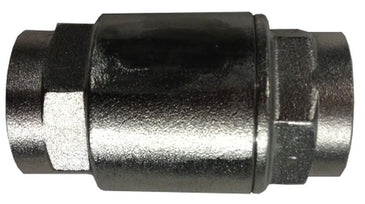

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 949446

1-1/4 BARREL SPRING CHECK VALVE, Valves, SS Check Valves, Barrel Type Spring Check Valve

Item Number	949446
Brand	Midland Metal Mfg.
Additional Information	2 psi Opening Pressure; 3.23 in Length; 2.362 in Dia; 1-1/4-11-1/2 Thread Size; 1.400 lb Weight
Body Material	CF8M/CF8 Stainless Steel
Category	Valves
Connection Type	FNPT
Description	Barrel Type Spring Check Valve
Disc Material	304 Stainless Steel
Domestic/Import	Import
Inlet to Outlet Length	3.23 in
Material	Stainless Steel
Media	Gas; Oil; Water
Nominal Size	1-1/4 in
Pressure Rating	300 psi
Seal Material	PTFE
Seat Material	NBR
Section	SS Check Valves
Shape	Barrel
Temperature Rating	-10 to 120 deg C
Trim Material	304 Stainless Steel Bolt/316/304 Stainless Steel Spring/CF8M/CF8 Stainless Steel Cap
