949162 | 3/8 2PC 316SS BALL VLV, Valves, Stainless Steel Ball Valves, 1000 PSI Two Piece Full Port Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 949162

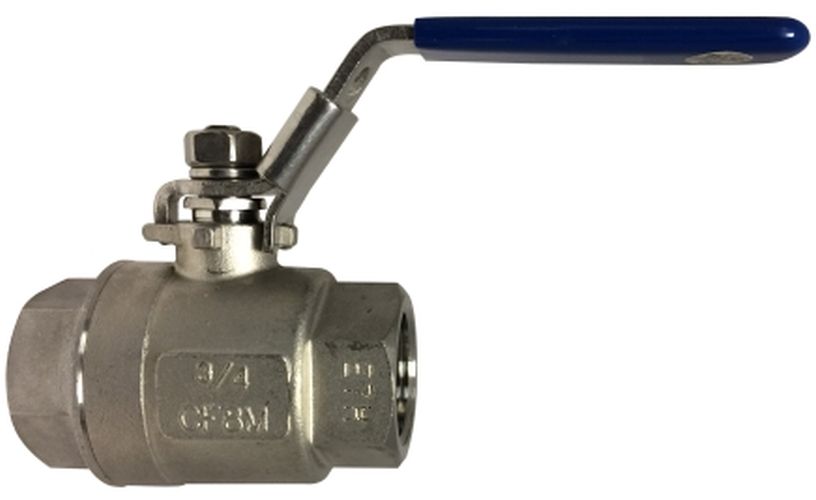

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 949162

3/8 2PC 316SS BALL VLV, Valves, Stainless Steel Ball Valves, 1000 PSI Two Piece Full Port Ball Valve

Item Number	949162
Brand	Midland Metal Mfg.
Additional Information	125 psi Steam Pressure; 1500 psi Hydrostatic Test Pressure; 3/8-18 Thread Size; 0.500 lb Weight
Ball Material	316 Stainless Steel
Body Material	316 Stainless Steel
Category	Valves
Connection Type	FIP
Description	1000 PSI Two Piece Full Port Ball Valve
Dimensions	2.13 in L
Domestic/Import	Import
Handle Material	AISI 304 Stainless Steel
Inlet to Outlet Length	2.13 in
Material Standard	ASTM A351 CF8M
Material	Stainless Steel
Nominal Size	3/8 in
Operator Type	Locking Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	1000 psi WOG
Seal Material	PTFE
Seat Material	PTFE
Section	Stainless Steel Ball Valves
Shape	Valve
Stem Material	AISI 304 Stainless Steel
Temperature Rating	-60 to 450 deg F
Top to Inlet Center	2.16 in
Trim Material	AISI 304 Stainless Steel Nut and Washer; Gland Nut
