949102 | 3/8 1000PSI 1 PC SS BALL VALVE, Valves, Stainless Steel Ball Valves, One Piece Standard Port Ball Valve | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 949102

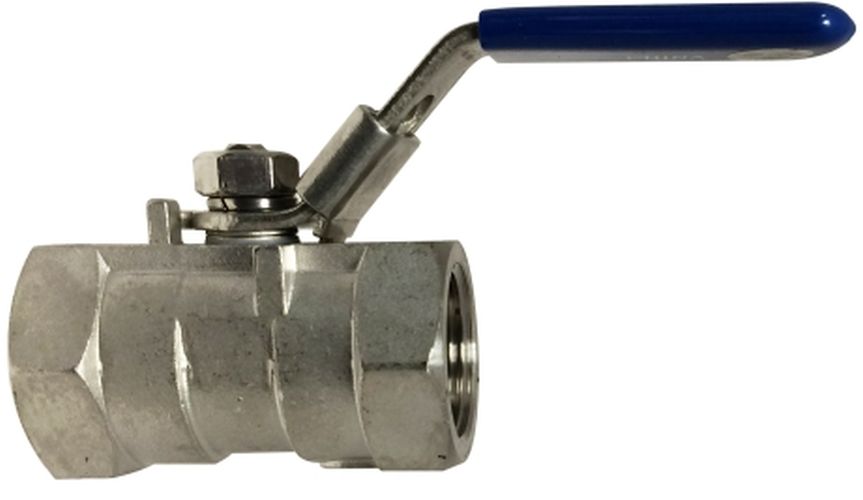

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 949102

3/8 1000PSI 1 PC SS BALL VALVE, Valves, Stainless Steel Ball Valves, One Piece Standard Port Ball Valve

Item Number	949102
Brand	Midland Metal Mfg.
Additional Information	3/8-18 Thread Size; 0.230 lb Weight
Ball Material	316 Stainless Steel
Body Material	316 Stainless Steel
Category	Valves
Connection Type	FNPT x FNPT
Description	One Piece Standard Port Ball Valve
Dimensions	1.74 in L
Domestic/Import	Import
Handle Material	AISI 304 Stainless Steel
Inlet to Outlet Length	1.74 in
Material Standard	ASTM A351 CF8M
Material	Stainless Steel
Nominal Size	3/8 in
Operator Type	Locking Handle
Packing Material	AISI 304 Stainless Steel Ring
Port Type	Standard
Pressure Rating	1000 psi
Seal Material	PTFE
Seat Material	PTFE
Section	Stainless Steel Ball Valves
Shape	Valve
Stem Material	AISI 304 Stainless Steel Nut
Top to Inlet Center	1.53 in
Trim Material	PTFE Thrust Washer
