948176 | 1-1/2 MXF FULL PORT BALL VALVE UL APPROV | Midland Metal Mfg.
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
55% OFF LIST PRICE List $144.88

Web Price:

$64.99
Availability: IN STOCK
Lead Time: 0–1 Business Days
Rush orders placed by 1:00 PM CT are eligible for same-day shipping.
Add 1 more to save 2%
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Special Notes
The product is not cancelable or returnable unless found defective
Volume pricing — discount applies automatically at checkout
Quantity
Price Each
Additional Off
2+
$63.70
2%
5+
$61.75
5%
10+
$58.50
10%
30+
Call us for discounted pricing

Volume breaks above are automatic up to 30 units. Beyond that, our team quotes project pricing on this line every day — reach out before you order for a custom quote.

Call (847) 773-0645Get a Quote

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 4pm CDT M-F

Call (847) 773-0645

Documents: 948176

Datasheet More Info

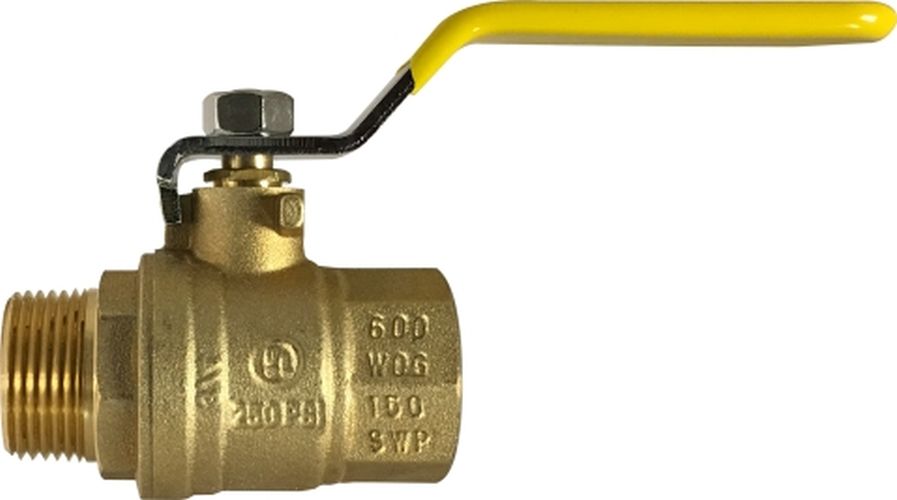

948176 | 1-1/2 MXF FULL PORT BALL VALVE UL APPROV | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 948176
Midland Metal Mfg. | 948176
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 948176
Jump to: Overview & Specifications Reviews

Overview Details for 948176

1-1/2 MXF FULL PORT BALL VALVE UL APPROV, Valves, Male x Female Ball Valves, MIP X FIP 600# Full Port Ball Valve

Specifications

Item Number 948176
Brand Midland Metal Mfg.
Additional Information 1-1/2-11-1/2 Thread Size; 2.500 lb Weight
Ball Material Brass
Body Material Brass
Category Valves
Connection Type MPT x FPT
Description MIP X FIP 600# Full Port Ball Valve
Dimensions 3.965 in L
Domestic/Import Import
Handle Material Carbon Steel
Inlet to Outlet Length 3.965 in
Lead-Free/Contains Lead Contains Lead
Material Brass
Nominal Size 1-1/2 in
Operator Type 1/4 Turn Handle
Packing Material PTFE
Port Type Full
Pressure Rating 600 psi WOG
Seal Material PTFE
Seat Material PTFE
Section Male x Female Ball Valves
Shape Valve
Stem Material Brass
Temperature Rating -20 to 300 deg F
Top to Inlet Center 3.346 in
Trim Material Brass Impacted Nut/Steel Stem Nut
